Product Summary

The AD9850BRS is a highly integrated device that uses advanced DDS technology coupled with an internal high speed, high performance, D/A converter and comparator, to form a complete digitally programmable frequency synthesizer and clock generator function. When referenced to an accurate clock source, the AD9850BRS generates a spectrally pure, frequency/phase-programmable, analog output sine wave. The applications of the AD9850BRS include Frequency/Phase–Agile Sine-Wave Synthesis, Clock Recovery and Locking Circuitry for Digital Communications, Digitally Controlled ADC Encode Generator and Agile Local Oscillator Applications.

Parametrics

AD9850BRS absolute maximum ratings: (1)Maximum Junction Temperature: +165℃; (2)VDD: +6 V; (3)Digital Inputs: –0.7 V to +VS; (4)Digital Output Continuous Current: 5 mA; (5)DAC Output Current: 30 mA; (6)Storage Temperature: –65 to +150℃; (7)Operating Temperature: –40 to +85℃; (8)Lead Temperature (Soldering 10 sec): +300℃; (9)SSOP θJA Thermal Impedance: 82℃/W.

Features

AD9850BRS features: (1)125 MHz Clock Rate; (2)On-Chip High Performance DAC and High Speed Comparator; (3)DAC SFDR > 50 dB @ 40 MHz AOUT; (4)32-Bit Frequency Tuning Word; (5)Simplified Control Interface: Parallel Byte or Serial Loading Format; (6)Phase Modulation Capability; (7)+3.3 V or +5 V Single Supply Operation; (8)Low Power: 380 mW @ 125 MHz (+5 V); (9)Low Power: 155 mW @ 110 MHz (+3.3 V); (10)Power-Down Function; (11)Ultrasmall 28-Lead SSOP Packaging.

Diagrams

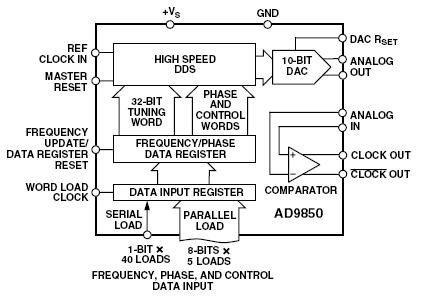

AD9850BRS block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD9850BRS
AD9850BRS

IC DDS DAC W/COMP 125MHZ 28-SSOP
Data Sheet
0-16: $14.79
AD9850BRS-REEL
AD9850BRS-REEL

IC DDS SYNTHESIZER CMOS 28-SSOP
Data Sheet
0-1500: $10.66
AD9850BRSZ
AD9850BRSZ

IC DDS SYNTHESIZER CMOS 28-SSOP
Data Sheet
0-1: $13.84
1-10: $12.80
10-100: $10.93
100-250: $10.03
250-500: $9.55
500-1000: $9.22
AD9850BRSZ-REEL
AD9850BRSZ-REEL

IC DDS SYNTHESIZER CMOS 28-SSOP
Data Sheet
0-1500: $9.22
