Product Summary

The DSP1-DC9V is a miniature power relay in DS relay. Applications of theDSP1-DC9V include: Terminal devices of information processing equipment, such as printer, data recorder, Office equipment (copier, facsimile), Measuring instruments, NC machines, temperature controllers and programmable logic controllers.

Parametrics

DSP1-DC9V absolute maximum ratings: (1) Drop-out VDC (min) : 0.3V; (2) Pick-up voltage VDC (Max.) : 2.4V; (3) Nominal operating current, mA: 300mA; (4) Coil resistance Ω (±10%) : 480Ω; (5) Max. allowavle voltage, at 50°C, VDC: 15.5V

Features

DSP1-DC9V features: (1) Power types added to DS relay series; (2) High switching capacity: 1a: 8 A 250 V AC / 1a1b, 2a: 5 A 250 V AC; (3) High sensitivity: 190 mW pick-up power; (4) High contact welding resistance; (5) Latching types available; (6) High breakdown voltage 3,000 Vrms between contacts and coil 1,000 Vrms between open contacts Meeting FCC Part 68; (7) Sealed types are standard.

Diagrams

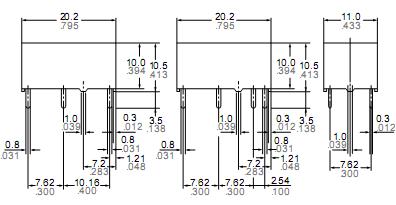

DSP1-DC9V Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

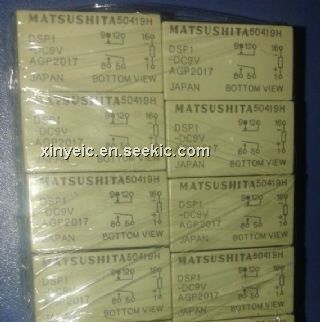

DSP1-DC9V
DSP1-DC9V
Panasonic Electric Works
General Purpose / Industrial Relays 1 FormA 1Form B 9VDC 250VAC 5A 30VDC
Data Sheet
0-1: $4.54
1-25: $4.18
25-50: $3.71
50-100: $3.31
DSP1-DC9V-F
DSP1-DC9V-F
Panasonic Electric Works
General Purpose / Industrial Relays 1 FormA 1Form B 9VDC 250VAC 5A 30VDC
Data Sheet
0-1: $5.15
1-25: $4.71
25-50: $4.21
50-100: $3.58
DSP1-DC9V-R
DSP1-DC9V-R
Panasonic Electric Works
General Purpose / Industrial Relays 1 FormA 1Form B 9VDC 250VAC 5A 30VDC RvPo
Data Sheet
0-1: $5.15
1-25: $4.52
25-50: $4.21
50-100: $3.58
DSP1-DC9V-R-F
DSP1-DC9V-R-F
Panasonic Electric Works
General Purpose / Industrial Relays 5 AMP 9VDC SPST-NO/NC SEALED
Data Sheet
0-1: $5.15
1-25: $4.71
25-50: $4.21
50-100: $3.58
