Product Summary

The LM6132BIM provides new levels of speed vs power performance in applications where low voltage supplies or power limitations previously made compromise necessary. The LM6132BIM can be driven by voltages tha texceed both power supply rails,thus eliminating concerns over exceeding the common-mode voltage range.Applications of the LM6132BIM include: Battery operated instrumentation, Instrumentation Amplifiers, Portable scanners, Wireless communications and Flat panel display driver.

Parametrics

LM6132BIM absolute maximum ratings: (1) ESD Tolerance: 2500V; (2) Differential Input Voltage: 15V; (3) Voltage at Input/Output Pin: (V+) +0.3V, (V-) -0.3V; (4) Supply Voltage(V+ - V-) : 35V; (5) Current at Input Pin: ±10mA; (6) Current at Output Pin: ±25mA: (7) Current at Power Supply Pin: 50mA; (8) LeadTemp.(soldering,10sec) : 260°C; (9) Storage Temperature Range: -65°C to +150°C; (10)Junction Temperature Range: -40°C≤Tj≤+85°C.

Features

LM6132BIM features: (1) Rail-to-Rail input CMVR-0.25V to 5.25V; (2) Rail-to-Rail output swing 0.01V to 4.99V; (3) High gain-bandwidth,10MHz at 20kHz; (4) Slerat12V/μS; (5) Low supply current 36μ0A/Amp; (6) Wide supply range 2.7V to over 24V; (7) CMRR 100dB; (8) Gain 100dB with RL=10k; (9) PSRR 82dB.

Diagrams

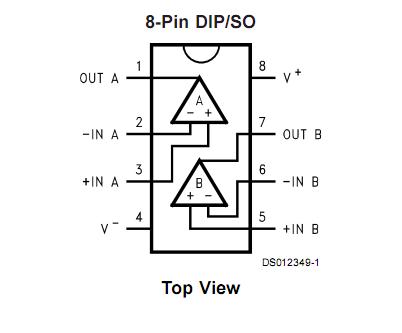

LM6132BIM Pin configuration
