Product Summary

The MRF455 is a NPN Silicon RF Power Transistor.

Parametrics

MRF455 absolute maximum ratings: (1)Collector–Emitter Voltage: 18 Vdc; (2)Collector–Emitter Voltage: 36 Vdc; (3)Emitter–Base Voltage: 4.0 Vdc; (4)Collector Current — Continuous: 15 Adc.

Features

MRF455 features: (1)Specified 12.5 Volt, 30 MHz Characteristics ; (2)Output Power = 60 Watts; (3)Minimum Gain = 13 dB; (4)Efficiency = 55%.

Diagrams

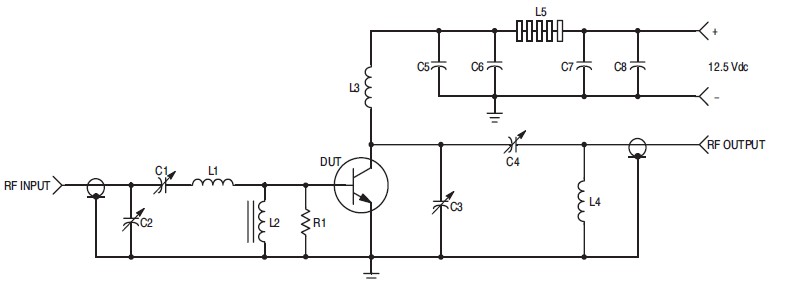

MRF455 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MRF455
MRF455
M/A-COM Technology Solutions
Transistors RF Bipolar Power 2-30MHz 60Watts 12.5Volt Gain 13dB
Data Sheet
0-1: $42.64
1-10: $38.37
10-25: $35.17
25-50: $31.97
