Product Summary
The SKIIP31NAB125T12 is a driver circuit. Application areas of the SKIIP31NAB125T12 include Driving of IGBTs.
Parametrics
SKIIP31NAB125T12 absolute maximum ratings: 1)15 V supply voltage: 18 V; (2)5 V supply voltage: 6 V; (3)input signal voltage (HIGH) max:VDD5V + 0.3 V; (4)input signal voltage (LOW) min: GND - 0.3 V.
Features
SKIIP31NAB125T12 features: (1)Interlock of TOP and BOTTOM switches in each halfbridge; (2)Short pulse suppression; (3)Supply undervoltage protection; (4)Generation of the system clock; (5)Integrated DC/DC-converter driver circuit; (6)Error monitoring.

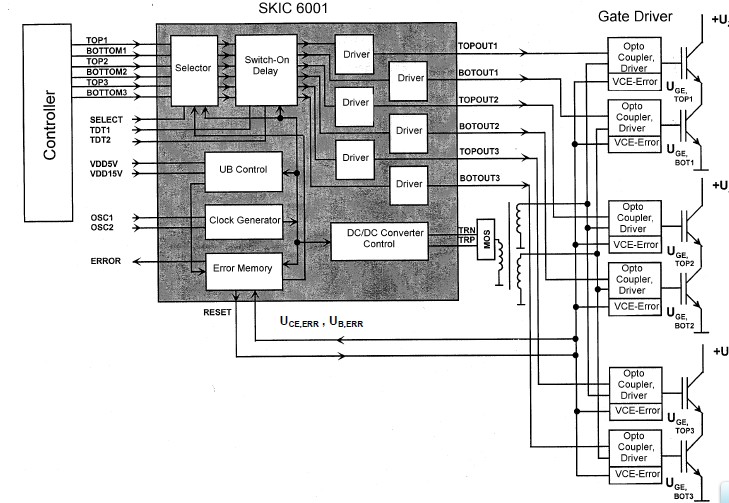

Diagrams
 |
