TDA1170N

TDA1170N, low-noise TV vertical deflection system, DIP, 35V, 2A, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.67 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 50 :	0.67 / Piece
51 ~ 200 :	0.59 / Piece
201 ~ 500 :	0.50 / Piece

PartNumber:: TDA1170N

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 05+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. yoyo's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-21

From Other Seller

Part Number:TDA1170N
US $0.50 - 0.67
Quantity:

piece

Product Summary

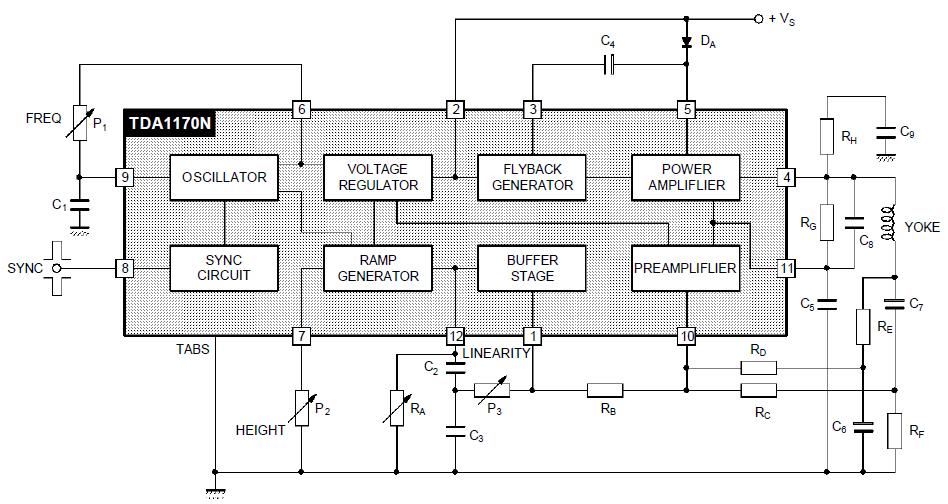

The TDA1170N is a monolithic integrated circuit in a 12-lead quad in-line plastic package. It is intended for use in black and white and colour TV receivers. Low-noisemakes the TDA1170N particularly suitable for use in monitors. The functions incorporated are: synchronization circuit, oscillator and ramp generator, high power gain amplifier, flyback generator, voltage regulator.

Parametrics

TDA1170N absolute maximum ratings: (1)VS, Supply Voltage at Pin 2: 35 V; (2)V4, V5, Flyback Peak Voltage: 60 V; (3)V10, Power Amplifier Input Voltage: -0.5 to + 10V; (4)Io, Output Peak Current (non repetitive) at t = 2msec: 2 A; (5)Io, Output Peak Current at f = 50Hz t 3 10msec: 2.5 A; (6)Io, Output Peak Current at f = 50Hz t > 10msec: 1.5 A; (7)I3, Pin 3 DC Current at V4 < V2: 100 mA; (8)I3, Pin 3 Peak to Peak Flyback Current for f = 50Hz, tfly≤1.5msec: 1.8 A; (9)I8, Pin 8 Current: ±20 mA; (10)Ptot, Power Dissipation : at Tab = 90℃: 5W; at Tamb = 80℃ (free air): 1W; (11)Tstg, Tj, Storage and Junction Temperature: -40 to +150℃.

Features

TDA1170N features: (1)On-Chip Frequency to Voltage Converter; (2)On-Chip Ramps Generator; (3)Soft-Start; (4)Load Current Limitation; (5)Tachogenerator Circuit Sensing; (6)Direct Supply from AC Line; (7)Security Functions Peformed by Monitor.
