MCP617-I/SN

mcp617-i/sn, Micropower Bi-CMOS Op Amp, SOP, 2.3V to 5.5V, ±30 mA, Microchip Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.45~0.55 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
50 ~ 100 :	0.55 / Piece
101 ~ 200 :	0.49 / Piece
201 ~ 500 :	0.45 / Piece

PartNumber:: MCP617-I/SN

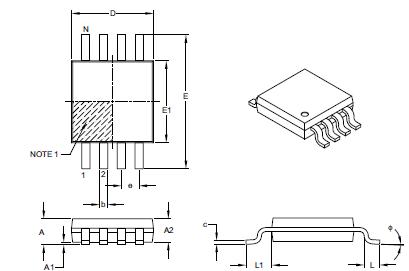

Brand:: Microchip Technology - Microchip | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. yoyo's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-23

From Other Seller

Part Number:MCP617-I/SN
US $0.45 - 0.55
Quantity:

piece

Product Summary

The mcp617-i/sn is an operational amplifier (op amp) from Microchip Technology Inc. are capable of precision, low-power, single-supply operation. The op amp is unity-gain stable, has low input offset voltage (±150 μV, maximum), rail-to-rail output swing and low input offset current (0.3 nA, typical). These features make the op amp well suited for battery-powered applications. The applications of the mcp617-i/sn include Battery Power Instruments, Weight Scales, Strain Gauges, Medical Instruments, Test Equipment.

Parametrics

mcp617-i/sn absolute maximum ratings: (1)VDD, VSS: 7.0V; (2)Current at Analog Input Pins (VIN+ and VIN.): ±2 mA; (3)Analog Inputs (VIN+ and VIN-): VSS -0.3V to VDD +0.3V; (4)All other Inputs and Outputs: VSS -0.3V to VDD +0.3V; (5)Difference Input Voltage: |VDD-VSS|; (6)Output Short Circuit Current: Continuous; (7)Current at Output and Supply Pins: ±30 mA; (8)Storage Temperature: -65℃ to +150℃; (9)Maximum Junction Temperature (TJ): +150℃; (10)ESD Protection On All Pins (HBM; MM): 4 kV; 400V.

Features

mcp617-i/sn features: (1)Low Input Offset Voltage: ±150μV (maximum); (2)Low Noise: 2.2 μVP-P (typical, 0.1 Hz to 10 Hz); (3)Rail-to-Rail Output; (4)Low Input Offset Current: 0.3 nA (typical); (5)Low Quiescent Current: 25μA (maximum); (6)Power Supply Voltage: 2.3V to 5.5V; (7)Unity Gain Stable; (8)Chip Select (CS) Capability: MCP618; (9)Industrial Temperature Range: -40℃ to +85℃; (10)No Phase Reversal; (11)Available in Single, Dual and Quad Packages.
