Product Summary

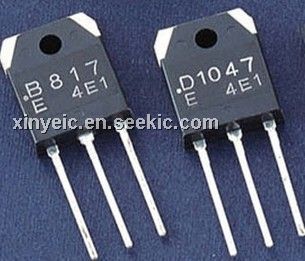

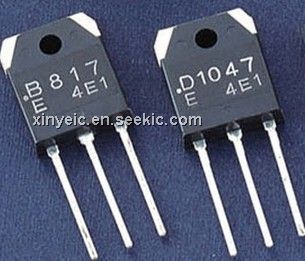

The 2SD1047 is an NPN silicon power transistor. And the 2SD1047 transistor is designed for use in general purpose power amplifier application.
Parametrics
2SD1047 maximum ratings: (1) Colletor-Emitter Voltage VCEO: 140V; (2) Collector-Base Voltage VCBO: 160V; (3) Emitter-Base Voltage VEBO: 6.0V; (4) Collector Current-Continuous-Peak IC: 12A, ICM: 15A; (5) Total Power Dissipation@Tc=25°C, Debrate above 25°C PD: 100W, 0.8W/°C; (6) Operating and storage junction temperature TJ, TSTG: -55 to +150°C.
Features
2SD1047 features: (1) Collector-Emitter Voltage VCEO=140V (Min); (2) DC Current Gain hFE=60-200@Ic=1.0A; (3) Complement to 2SB817.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SD1047 |
STMicroelectronics |
Transistors Bipolar (BJT) IGBT & Power Bipolar |
Data Sheet |
|
|
||||||||||||
 |
2SD1047P |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
2SD1047P-E |
|
TRANS NPN 140V 12A TO-3PB |
Data Sheet |
Negotiable |
|
||||||||||||
