ACS102-5T1-TR

ACS102-5T1-TR, AC line switch, SOP, 500V, 8A, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.37~0.44 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
50 ~ 100 :	0.44 / Piece
101 ~ 300 :	0.40 / Piece
301 ~ 600 :	0.37 / Piece

PartNumber:: ACS102-5T1-TR

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. yoyo's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-22

From Other Seller

Part Number:ACS102-5T1-TR
US $0.37 - 0.44
Quantity:

piece

Product Summary

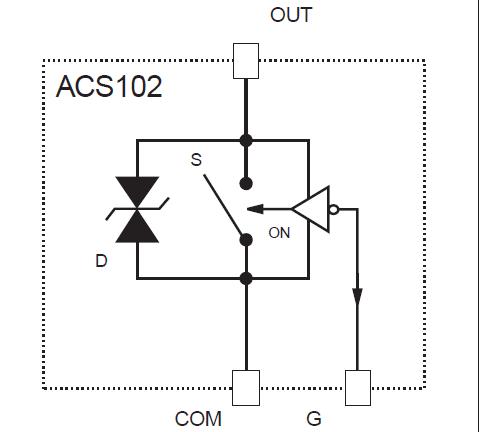

The ACS102-5T1-TR is an AC line switch. The ACS102-5T1-TR belongs to the AC line switch family built around the ASD concept. This high performance device is able to control an up to 0.3 A load device. The ACS switch embeds a high voltage clamping structure to absorb the inductive turn off energy and a gate level shifter driver to separate the digital controller from the main switch. It is triggered with a negative gate current flowing out of the gate pin. For further technical information, please refer to AN1172 application note.

Parametrics

ACS102-5T1-TR absolute maximum ratings: (1)VDRM / VRRM, Repetitive peak off-state voltage Tj = 125℃: 500 V; (2)IT(RMS), RMS on-state current full cycle sine wave: 50 to 60 Hz, TO-92 Tamb = 100℃: 0.2 A; SO-8 Tamb = 100℃: 0.2 A; (3)ITSM, Non repetitive surge peak on-state current Tj, initial = 25℃, full cycle sine wave, F =50 Hz: 7.3 A; F =60 Hz: 8 A; (4)dI/dt, Critical rate of repetitive rise of on-state current, IG = 10mA with tr = 100ns, F =120 Hz: 20 A/ms; (5)VPP, Non repetitive line peak pulse voltage note 1: 2 kV; (6)Tstg, Storage temperature range: -40 to + 150℃; (7)Tj, Operating junction temperature range: -30 to + 125℃; (8)Tl, Maximum lead temperature for soldering during 10s: 260℃.

Features

ACS102-5T1-TR features: (1)Blocking voltage: VDRM / VRRM = 500V; (2)Clamping voltage: VCL = 600 V; (3)Nominal current: IT(RMS) = 0.2 A; (4)Gate triggering current: IGT < 5 mA; (5)Switch integrated driver; (6)Triggering current is sourced by the gate; (7)SO-8 package: drive reference COM connected to 2 cooling pins; 3.5 mm creepage distance from pin OUT to other pins.
