Product Summary

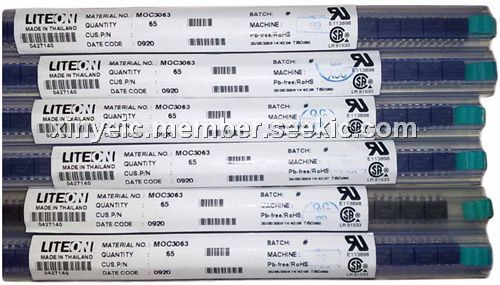

The MOC3063 is a 6pin DIP zero-cross optoisolators triac driver.

Parametrics

Absolute maximum ratings: (1)Forward Current:50mA ; (2)Reverse Voltage:6V ; (3)Power Dissipation:120 mW ; (4)Off-State Output Terminal Voltage:600V ; (5)Peak Repetitive Surge Current( PW=100μs, 120pps ):1A ; (6)Collector Power Dissipation:150mW ; (7)Total Power Dissipation:250 mW ; (8)Isolation Voltage:5,000 Vrms ; (9)Ambient Operating Temperature Range:-40℃ to +100℃; (10)Storage Temperature Range:-55℃ to +150℃; (11)Soldering Temperature:260℃.

Features

Features: (1)Isolation voltage between input and output Viso : 5,000Vrms ; (2)6pin DIP zero-cross optoisolators triac driver output ; (3)High repetitive peak off-state voltage VDRM: Min. 600V ; (4)High critical rate of rise of off-state voltage ( dv/dt : MIN.1000V / μs ) ; (5)UL approved ( No. E113898 ) ; (6)CSA approved ( No. CA91533-1 ) ; (7)FIMKO approved ( No. 15469 ) ; (8)NEMKO approved ( No. P00102123 ) ; (9)DEMKO approved ( No. 309968-01 ) ; (10)SEMKO approved ( No. 0032019/01-11 ) ; (11)VDE approved (No. 094722 ) ; (12)RoHS compliance.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MOC3063FM
MOC3063FM

Fairchild Semiconductor

Triac & SCR Output Optocouplers 6Pin600V Optocoupler Zero Cross Triac Dr

Data Sheet

Negotiable
MOC3063FR2M
MOC3063FR2M

Fairchild Semiconductor

Triac & SCR Output Optocouplers 6Pin600V Optocoupler Zero Cross Triac Dr

Data Sheet

Negotiable
MOC3063FR2VM
MOC3063FR2VM

Fairchild Semiconductor

Triac & SCR Output Optocouplers 6Pin600V Optocoupler Zero Cross Triac Dr

Data Sheet

Negotiable
MOC3063M
MOC3063M

Fairchild Semiconductor

Triac & SCR Output Optocouplers 600V Optocoupler Triac Driver ZC

Data Sheet

0-1: $0.56
1-25: $0.50
25-100: $0.40
100-250: $0.35
MOC3063-M
MOC3063-M

Other


Data Sheet

Negotiable
MOC3063S
MOC3063S

Lite-On

Triac & SCR Output Optocouplers Optocoupler TRIAC

Data Sheet

0-1: $0.28
1-10: $0.25
10-50: $0.23
50-100: $0.21
MOC3063SR2M
MOC3063SR2M

Fairchild Semiconductor

Triac & SCR Output Optocouplers 6Pin600V Optocoupler Zero Cross Triac Dr

Data Sheet

0-1: $0.56
1-25: $0.50
25-100: $0.40
100-250: $0.35
MOC3063SR2VM
MOC3063SR2VM

Fairchild Semiconductor

Triac & SCR Output Optocouplers 6Pin600V Optocoupler Zero Cross Triac Dr

Data Sheet

0-1: $0.71
1-25: $0.63
25-100: $0.51
100-250: $0.44
