AD8302ARU

AD8302ARU, RF/IF Gain and Phase Detector, TSSOP, 5.5V, -3 dBV, 2.7 GHz, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.33~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 50 :	1.50 / Piece
51 ~ 200 :	1.42 / Piece
201 ~ 500 :	1.33 / Piece

PartNumber:: AD8302ARU

Brand:: Analog Devices - ADI | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. yoyo's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-22

From Other Seller

Part Number:AD8302ARU
US $1.33 - 1.50
AD8302ARU

US $3.52 - 4.69 / Piece
(0) Remove
AD8302ARUZ

US $3.00 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD8302ARU is a LF.2.7 GHz RF/IF Gain and Phase Detector for measuring gain/loss and phase in numerous receive, transmit, and instrumentation applications. It requires few external components and a single supply of 2.7 V–5.5 V. The ac-coupled input signals can range from –60 dBm to 0 dBm in a 50 Ω system, from low frequencies up to 2.7 GHz. The outputs of AD8302ARU provide an accurate measurement of either gain or loss over a ±30 dB range scaled to 30 mV/dB, and of phase over a 0℃–180℃ range scaled to 10 mV/degree. The applications of the AD8302ARU include RF/IF PA Linearization Precise, RF Power Control, Remote System Monitoring and Diagnostics, Return Loss/VSWR Measurements, Log Ratio Function for AC Signals.

Parametrics

AD8302ARU absolute maximum ratings: (1)Supply Voltage VS: 5.5 V; (2)PSET, MSET Voltage: VS + 0.3 V; (3)INPA, INPB Maximum Input: –3 dBV; (4)Equivalent Power Re. 50 Ω: 10 dBm; (5)θJA2: 150℃/W; (6)Maximum Junction Temperature: 125℃; (7)Operating Temperature Range: –40℃ to +85℃; (8)Storage Temperature Range: –65℃ to +150℃; (9)Lead Temperature Range (Soldering 60 sec): 300℃.

Features

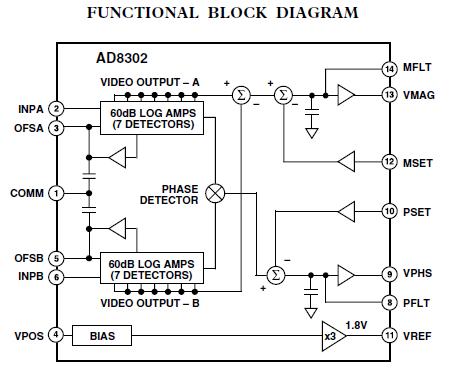

AD8302ARU features: (1)Measures Gain/Loss and Phase up to 2.7 GHz; (2)Dual Demodulating Log Amps and Phase Detector; (3)Input Range –60 dBm to 0 dBm in a 50 Ω System; (4)Accurate Gain Measurement Scaling (30 mV/dB) Typical Nonlinearity < 0.5 dB; (5)Accurate Phase Measurement Scaling (10 mV/Degree) Typical Nonlinearity < 1 Degree; (6)Measurement/Controller/Level Comparator Modes; (7)Operates from Supply Voltages of 2.7 V–5.5 V; (8)Stable 1.8 V Reference Voltage Output; (9)Small Signal Envelope Bandwidth from DC to 30 MHz.
