Product Summary
The AN5521 is a TV Vertical Deflection Output IC. Combining with the deflection-signal processing IC, the vertical output circuit design becomes easy.
Parametrics
AN5521 absolute maximum ratings: (1)Supply voltage, VCC: 30V; (2)Circuit voltage, V3-1: 0 to 60V; V4-1: -1 to 6V; V5-1: -1 to 3V; (3)Supply current, ICC: 360mA; (4)Circuit current, I2: -1800 to 1800mAO-P; I6: -1800 to 1800mAO-P; (5)Power dissipation, PD: 8W; (6)Operating ambient temperature, Topr: -20 to 70℃; (7)Storage temperature, Tstg: -55 to 150℃.
Features
AN5521 features: (1)Low power cosumption, direct deflection coil driving capability; (2)High breakdown voltage: 60V.

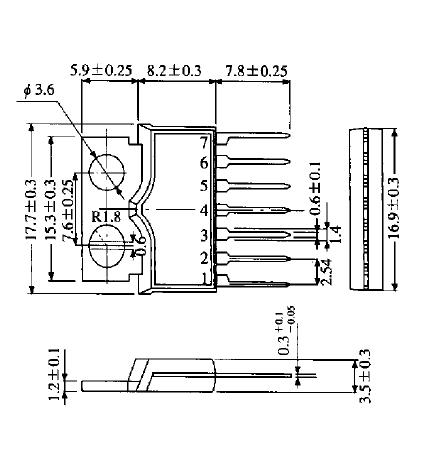

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AN5521 |
Other |
|
Data Sheet |
Negotiable |
|
||||
