Product Summary

The ULN2003 is a high-voltage, high-current darlington array. The ULN2003 is suited for interfacing between low-level logic circuitry and multiple peripheral power loads. It is designed for use with standard and schottky TTL where higher output currents are required and loading of the logic output is not a concern.

Parametrics

ULN2003 absolute maximum ratings: (1)output voltage:50V; (2)input voltage:30V; (3)continuous output current:500mA; (4)continuous input current:25mA; (5)operating temperature:-20℃ to +85℃; (6)storage temperature:-55℃ to +150℃.

Features

ULN2003 features: (1)TTL, DTL, MOS or CMOS compatible inputs; (2)output current to 600mA; (3)output voltage to 95V; (4)transient-protected outputs; (5)dual in-line plastic package or samll-outline IC package.

Diagrams

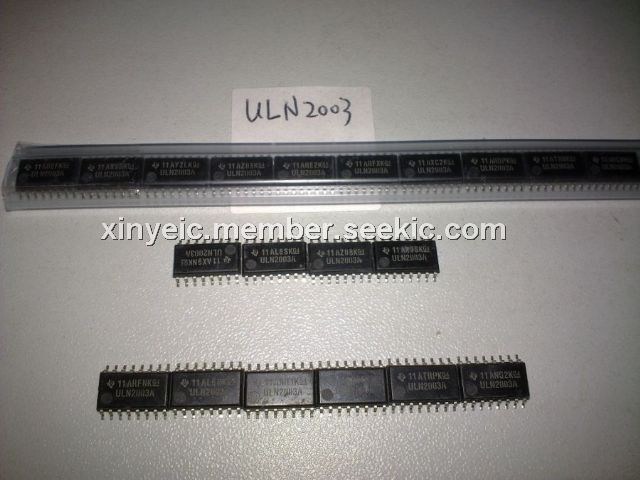

ULN2003 diagram
