Product Summary
The AOZ1017AI is a high efficiency, simple to use, 3A buck regulator. The AOZ1017AI works from a 4.5V to 16V input voltage range, and provides up to 3A of continuous output current with an output voltage adjustable down to 0.8V. The AOZ1017AI comes in an SO-8 package and is rated over a -40℃ to +85℃ ambient temperature range. The applications of the include Point of load DC/DC conversion, PCIe graphics cards, Set top boxes, DVD drives and HDD, LCD panels, Cable modems, Telecom/Networking/Datacom equipment.
Parametrics
AOZ1017AI absolute maximum ratings: (1)Supply Voltage (VIN): 18V; (2)LX to AGND: -0.7V to VIN +0.3V; (3)EN to AGND: -0.3V to VIN+0.3V; (4)FB to AGND: -0.3V to 6V; (5)COMP to AGND: -0.3V to 6V; (6)PGND to AGND: -0.3V to +0.3V; (7)Junction Temperature (TJ): +150℃; (8)Storage Temperature (TS): -65℃ to +150℃.
Features
AOZ1017AI features: (1)4.5V to 16V operating input voltage range; (2)50mΩ internal PFET switch for high efficiency: up to 95%; (3)Internal soft start; (4)Output voltage adjustable to 0.8V; (5)3A continuous output current; (6)Fixed 500kHz PWM operation; (7)Cycle-by-cycle current limit; (8)Short-circuit protection; (9)Output over voltage protection; (10)Thermal shutdown; (11)Small size SO-8 packages.

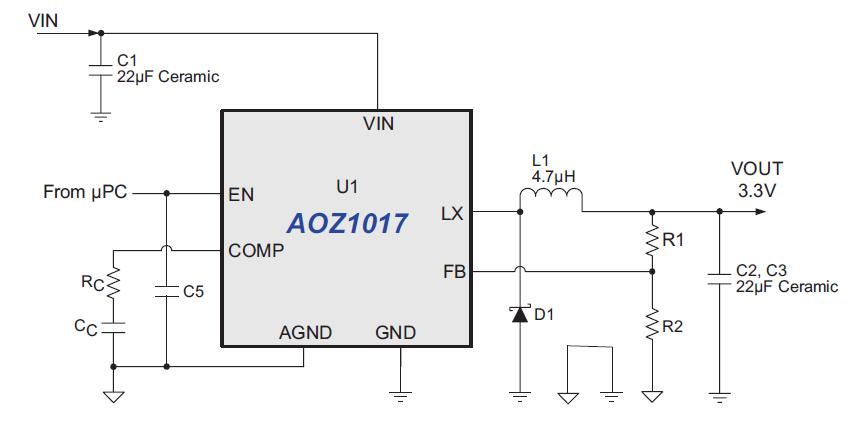

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AOZ1017AI |
|
IC REG BUCK ADJ 3A 8SOIC |
Data Sheet |
|
|
||||||
