Product Summary

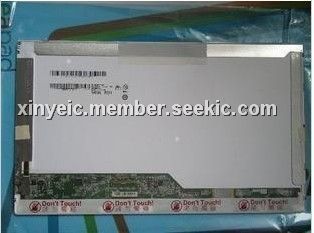

The B140XW01 is a color active matrix liquid crystal display composed of a TFT LCD panel.

Parametrics

B140XW01 absolute maximum ratings: (1)logic/ LCD drive voltage: 4V; (2)operating temperature: 50℃; (3)operating humidity: 95%RH; (4)storage temperature: 60℃; (5)storage humidity: 95%RH.

Features

B140XW01 features: (1)LED power supply: 21V; (2)LED enable input high level: 5.5V; (3)LED enable input low level: 0.8V; (4)PWM logic input high level: 5V.

Diagrams

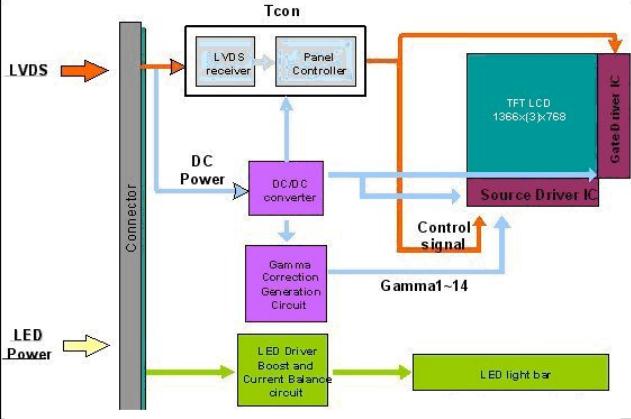

B140XW01 diagram
