Product Summary

The ixgh60n60c2 is a HiPerFASTTM C2-Class high speed IGBT.

Parametrics

ixgh60n60c2 absolute maxing ratings: (1)VCES, TJ= 25 to 150℃: 600 V; (2)VCGR, TJ= 25 to 150℃; RGE = 1 MΩ: 600 V; (3)VGES Continuous: ±20 V; (4)VGEM Transient: ±30 V; (5)IC25, TC = 25℃ (limited by leads): 75 A; (6)IC110, TC = 110℃: 60A; (7)ICM, TC = 25℃, 1 ms: 300 A; (8)SSOA VGE = 15 V, TVJ= 125℃, RG = 10 Ω: ICM = 100 A; (9)PC, TC = 25℃: 480 W; (10)TJ: -55 to +150 ℃; (11)TJM: 150 ℃; (12)Tstg: -55 to +150℃; (13)Maximum lead temperature for soldering: 300 ℃.

Features

ixgh60n60c2 features: (1)Very high frequency IGBT; (2)Square RBSOA; (3)High current handling capability; (4)MOS Gate turn-on- drive simplicity.

Diagrams

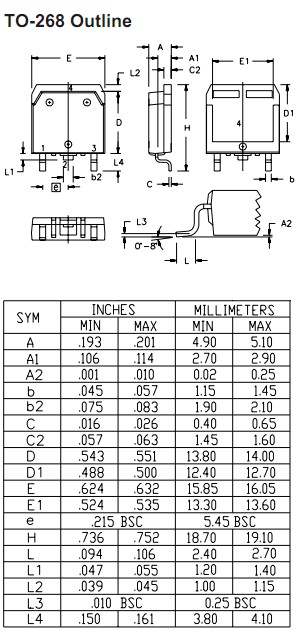

ixgh60n60c2 outline
