Product Summary

The CA747T is a high-gain single and dual operational amplifier for military, industrial and commerical applications.

Parametrics

CA747T absolute maxing ratings: (1)DC supply volatge( between V+ and V- terminals): 44 V; (2)Differential input voltage: ±30V; (3)DC input volatge: ±15V; (4)Output short-circuit duration: indefinite; (5)Device dissipation, up to 70℃: 500mW; (6)For temperature indicated above: derate linearly 6.67 mW/℃; (7)Voltage between offset null and V-: ±0.5V; (8)Operating temperature: -55 to +125℃; (9)Storage temperature: -65 to +150℃; (10)Lead temperature: 265℃.

Features

CA747T features: (1)Input bias current: 500nA max.; (2)Input offset current: 200 nA max.

Diagrams

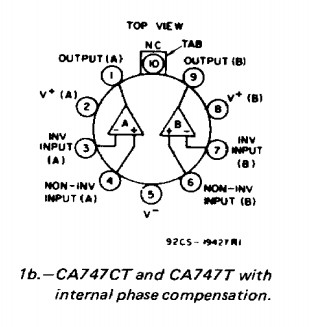

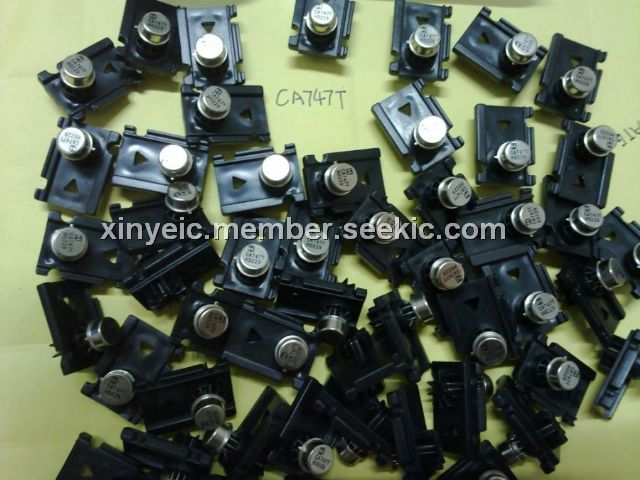

CA747T diagram
