Product Summary

The CM75DU-12F is a Mitsubishi IGBT module. Applications of the CM75DU-12F are: General purpose inverters & Servo controls, etc.

Parametrics

CM75DU-12F absolute maximum ratings: (1)VCES, Collector-emitter voltage, G-E Short: 600V; (2)VGES, Gate-emitter voltage, C-E Short: ±20V; (3)IC, Collector current, TC = 25℃: 75A; (4)ICM, Collector current, Pulse: 150A; (5)IE, Emitter current, TC = 25℃: 75A; (6)IEM Emitter current, Pulse: 150A; (7)Maximum collector dissipation: 290W; (8)Junction temperature: -40 to 150℃; (9)Storage temperature: -40 to 125℃; (10)Isolation voltage: 2500Vrms.

Features

CM75DU-12F features: (1)IC: 75A; (2)VCES: 600V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

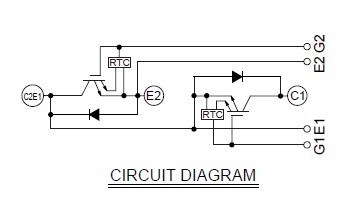

CM75DU-12F circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CM75DU-12F
CM75DU-12F

IGBT MOD DUAL 600V 75A F SER
Data Sheet
0-3: $40.46
