Product Summary

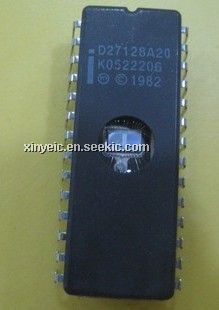

The D27128 is a 5V only, 131,072-bit ultraviolet erasable and electrically programmable read-only memory. The D27128 is fabricated with Intel’s HMOS 2-E technology which significantly reduces die size and greatly improves the device’s performance, reliability and manufacturability. The D27128 is currently available in the CERDIP package providing flexbility in prototyping and R&D environments where reprogrammability is required.

Parametrics

D27128 absolute maximum ratings: (1)Operating temperature during read: 0 to 70℃; (2)Temperature under bias: -10 to 80℃; (3)Storage temperature: -65 to 125℃; (4)All input or output voltage with respect to ground: -0.6 to 6.25V; (5)Voltage on A9 with respect to ground: -0.6 to 13.5V; (6)VPP supply voltage with respect to ground during programming: -0.6 to 14V; (7)VCC supply voltage with respect to ground: -0.6 to 7.0V.

Features

D27128 features: (1)Fast 150nsec access time; (2)Low power, 100mA maximum active; 40mA maximum standby; (3)Intellgent identifier mode, automated programming operations; (4)±10% VCC tolerance available; (5)Available in 28-pin cerdip package.

Diagrams

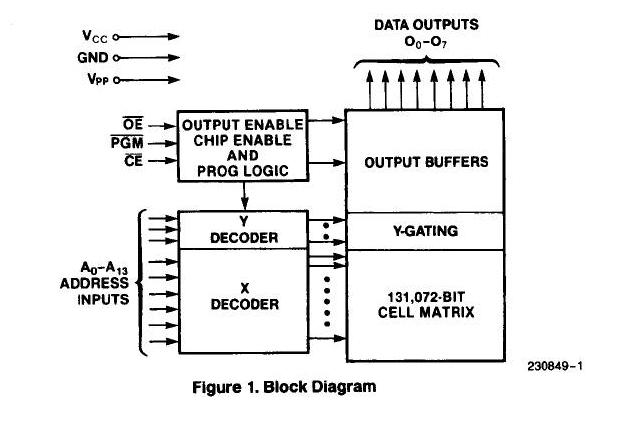

D27128 block diagram
