Product Summary
The STK795-821 is a chopper type voltage regulator.
Parametrics
Absolute maximum ratings: (1)maximum DC input voltage: 40V; (2)maximum output current: 3A; (3)operating case temperature: 105℃; (4)junction temperature: 150℃; (5)storage temperature: -30 to +105℃.
Features
Features: (1)self-oscillation type chopper regulator power IC using Sanyo’s original IMST substrate; (2)functional trimming is used to set 5V output with high accuracy; (3)cutoff function to cut off output voltage by external signal; (4)contains a transistor for overcurrent protector and possible to set the protection level externally.

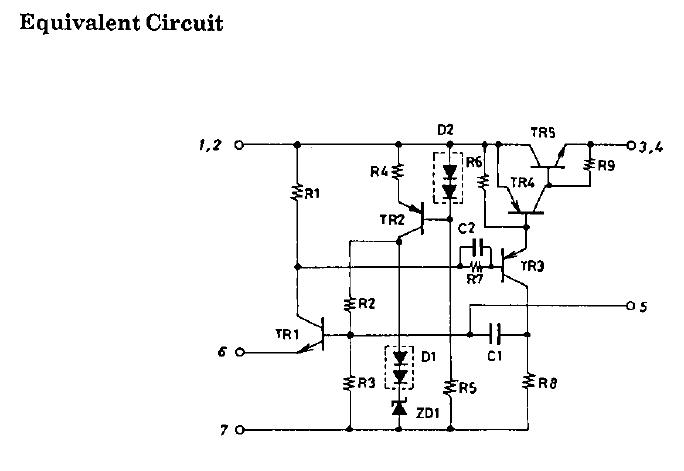

Diagrams
 |
