Product Summary

The BLX15 is a silicon N-P-N power transistor for use in industrial and military s.s.b. and c.w. euqipment operating in the h.f. and v.h.f band.

Parametrics

BLX15 absolute maximum ratings: (1)collector-base voltage:110V; (2)collector-emitter voltage: peak value:110V; (3)collector-emitter voltage(open base):53V; (4)emitter-base voltage:4.0V; (5)collector current(average):6.5A; (6)collector current:20A.

Features

BLX15 features: (1)rated for 150W P.E.P at 1.6MHz to 28MHz; (2)rated at 150W output power for frequencies up to 108MHz in c.w. operation; (3)supply voltage up to 50V; (4)plastic encapsulated stripline package; (5)delivered in matched hFE groups.

Diagrams

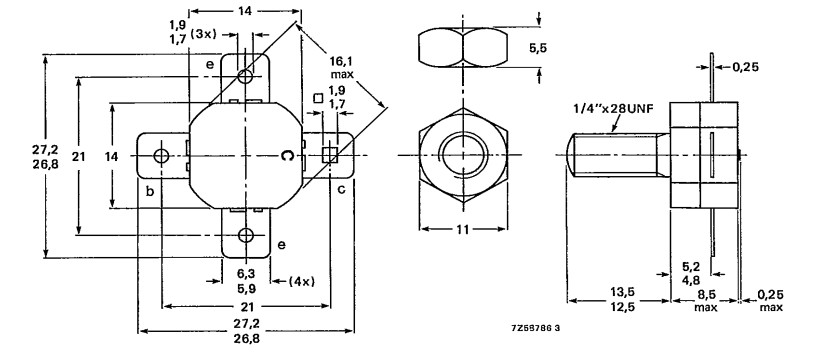

BLX15 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BLX15
BLX15
Advanced Semiconductor, Inc.
Transistors RF Bipolar Power RF Transistor
Data Sheet
0-1: $57.38
1-10: $52.65
10-25: $47.25
25-50: $41.85
