Product Summary
The ENC-03RC is an angular velocity sensor that uses he phenomenon of Coriolis force, which is generated when a rotational angular velocity is applied to the vibrator. The original, small ceramic bimorph vibrator ENC-03RC and imple Cap-Base structure realize their ultra-small size, under 0.1cc. The ENC-03RC is a surface mountable device, can be mounted by automatic surface mounter.
Parametrics
ENC-03RC absolute maximum ratings: (1) Supply Voltage: 2.7 to 5.25V; (2) Maximum Angular Velocity(deg./sec.) ： +/- 300; (3) Output (at Angu Velocity=0) (Vdc) : 1.35; (4) Scale Factor (mV/deg./sec.) : 0.67; (5) Linearity (%FS) : +/-5; (6) Response (Hz) : 50.
Features
ENC-03RC features: (1) Ultra-small and ultra-lightweight; (2) Quick response; (3) Low driving voltage, low current consumption; (4) Lead type: SMD; (5) Reflow soldering (standard peek temp. 245 deg. C) .

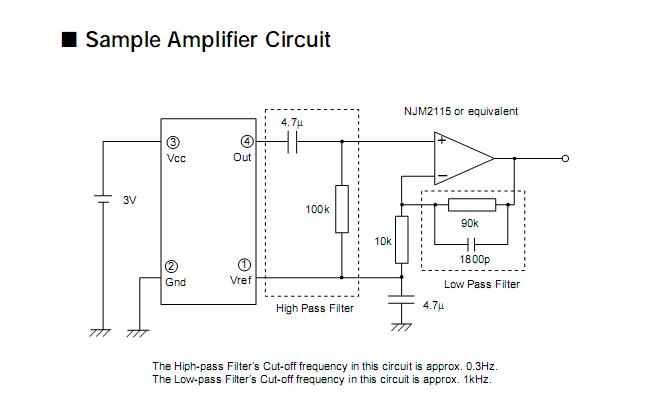

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ENC-03RC-R |
Murata |
Gyroscopes 50 Hz 5% 5.25volt |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
ENC-03RC-R |
Murata |
Gyroscopes 50 Hz 5% 5.25volt |
Data Sheet |
|
|
||||||
|
ENC-03RD-R |
Murata |
Gyroscopes 50 Hz 5% 5.25volt |
Data Sheet |
|
|
||||||
|
ENC-DA3 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
ENC-DATEC-L-BTOR |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
ENC-DATEC-L-BTRD |
Other |
|
Data Sheet |
Negotiable |
|
||||||
