Product Summary

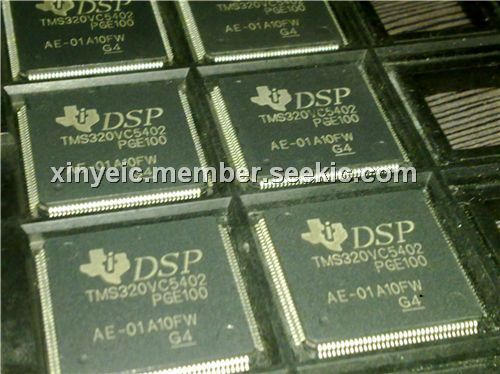

The TMS320VC5402PGE100 is a fixed-point, digital signal processor (DSP). It is based on an advanced modified Harvard architecture that has one program memory bus and three data memory buses.
Parametrics
Absolute maximum ratings: (1)Supply voltage I/O range:–0.3V to 4.0V; (2)Supply voltage core range:–0.3V to 2.4V; (3)Input voltage range:–0.3V to 4.5V; (4)Output voltage range:–0.3V to 4.5V; (5)Operating case temperature range:–40℃ to 100℃; (6)Storage temperature range:–55℃ to 150℃.
Features
Features: (1)4K x 16-Bit On-Chip ROM; (2)16K x 16-Bit Dual-Access On-Chip RAM; (3)Single-Instruction-Repeat and Block-Repeat Operations for Program Code; (4)Block-Memory-Move Instructions for Efficient Program and Data Management; (5)Instructions With a 32-Bit Long Word Operand; (6)Instructions With Two- or Three-Operand Reads; (7)Arithmetic Instructions With Parallel Store and Parallel Load; (8)Conditional Store Instructions; (9)Fast Return From Interrupt.

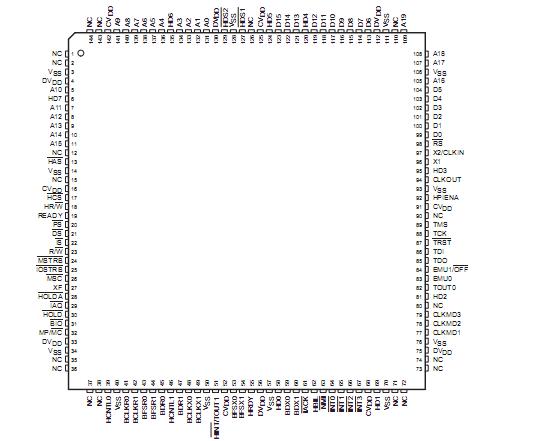

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TMS320VC5402PGE100 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) DSP |
Data Sheet |
|
|
|||||||||||||
