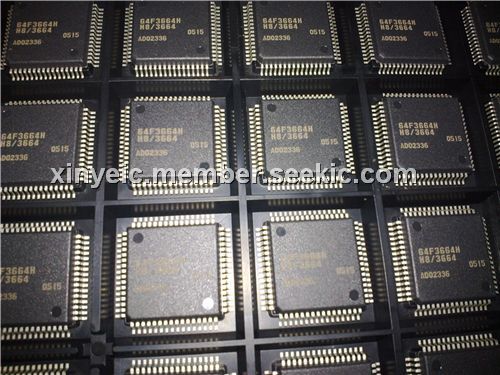

HD64F3664HV

single-chip microcomputer, QFP64, On-chip memory

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.05~4.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.05~4.20

PartNumber:: HD64F3664HV

Brand:: Renesas Technology Corp - Renesas | Pack: QFP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. yoyo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-05-23

From Other Seller

Part Number:HD64F3664HV
US $4.05 - 4.20
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HD64F3664HV is a single-chip microcomputer made up of the high-speed H8/300H CPU employing Renesas Technology original architecture as their cores, and the peripheral functions required to configure a system. The HD64F3664HV CPU has an instruction set that is compatible with the H8/300 CPU.

Parametrics

Absolute maximum ratings: (1)Power supply voltage: –0.3 to +7.0 V *; (2)Analog power supply voltage: –0.3 to +7.0 V; (3)Input voltage: Ports other than Port B and X1: –0.3 to VCC +0.3 V, Port B: –0.3 to AVCC +0.3 V, X1: –0.3 to 4.3 V; (4)Operating temperature: –20 to +75 ℃; (5)Storage temperature: –55 to +125 ℃.

Features

Features: (1)High-speed H8/300H central processing unit with an internal 16-bit architecture: Upward-compatible with H8/300 CPU on an object level, Sixteen 16-bit general registers, 62 basic instructions; (2)Various peripheral functions: Timer A (can be used as a time base for a clock), Timer V (8-bit timer), Timer W (16-bit timer), Watchdog timer, SCI3 (Asynchronous or clocked synchronous serial communication interface), I2C Bus Interface (conforms to the I2C bus interface format that is advocated by Philips Electronics), 10-bit A/D converter; (3)On-chip memory.
