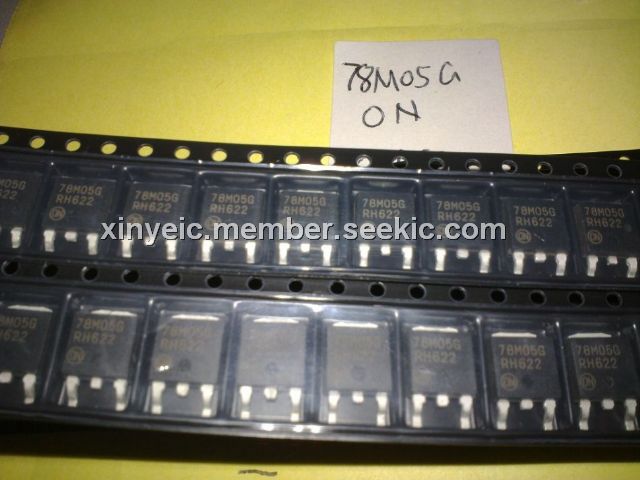

Product Summary
The 78M05G is a three-terminal positive regulator. It is available in TO-220, TO-220FP, DPAK and IPAK packages and with several fixed output voltages, making it useful in a wide range of applications. The 78M05G can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 0.5 A output current. Although designed primarily as fixed voltage regulators, The 78M05G can be used with external components to obtain adjustable voltage and currents.
Parametrics
78M05G absolute maximum ratings: (1)IO, Output current: Internally limited; (2)PD, Power dissipation: Internally limited; (3)TSTG, Storage temperature range: - 65 to 150℃; (4)TOP, Operating junction temperature range: 0 to 150℃.
Features
78M05G features: (1)Output current to 0.5 A; (2)Output voltages of 5; 6; 8; 9; 12; 15; 24 V; (3)Thermal overload protection; (4)Short circuit protection; (5)Output transition SOA protection.

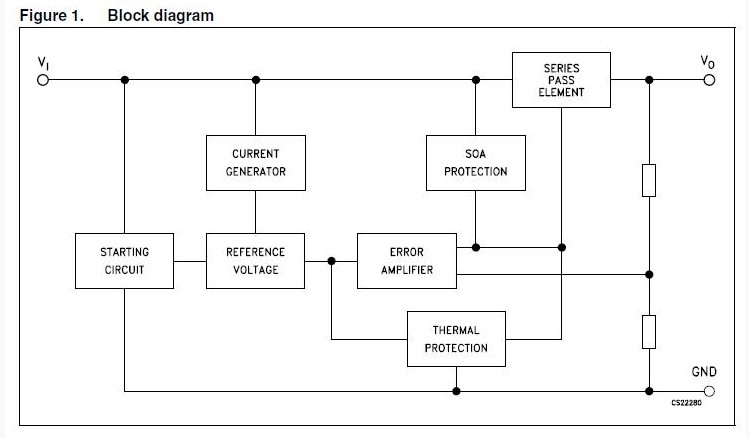

Diagrams
 |
