Product Summary

The LYE6SF is an Enhanced thin film LED. The applications of it are traffic lights, backlighting (LCD, switches, keys, displays, illuminated advertising), interior and exterior automotive lighting (e.g. dashboard backlighting and brake lights), substitution of micro incandescent lamps, marker lights (e.g. steps, exit ways, etc.), signal and symbol luminaire.

Parametrics

LYE6SF absolute maximum ratings: (1)Color:Yellow ; (2)Lens Style/Size:Round, 2.4mm ; (3)Millicandela Rating:1680mcd ; (4)Voltage - Forward (Vf) Typ:2.15V ; (5)Wavelength - Dominant:590nm ; (6)Wavelength - Peak:597nm ; (7)Current - Test:50mA ; (8)Viewing Angle:120° ; (9)Lens Type:Clear ; (10)Luminous Flux @ Current - Test:4.98 lm ; (11)Package / Case:4-PLCC ; (12)Mounting Type:Surface Mount ; (13)Packaging Cut:Tape (CT) ; (14)Lead Free Status:Lead Free ; (15)RoHS Status:RoHS Compliant.

Features

LYE6SF features: (1)package: white P-LCC-4 package, colorless clear silicone resin; (2)feature of the device: more light due to higher optical efficiency; (3)wavelength: 633 nm (super-red), 625 nm (red), 617 nm (amber), 606 nm (orange), 590 nm (yellow); (4)viewing angle: Lambertian Emitter (120°); (5)technology: InGaAlP ; (6)optical efficiency: 38 lm/W (super-red), 49 lm/W (red), 69 lm/W(amber, orange), 44 lm/W (yellow); (7)grouping parameter: luminous intensity, forward voltage, wavelength; (8)assembly methods: suitable for all SMT assembly methods; (9)soldering methods: IR reflow soldering and TTW soldering; (10)preconditioning: acc. to JEDEC Level 2; (11)taping: 8 mm tape with 2000/reel, 180 mm or 8000/reel, 330 mm; (12)ESD-withstand voltage: up to 2 kV acc. to JESD22-A114-D.

Diagrams

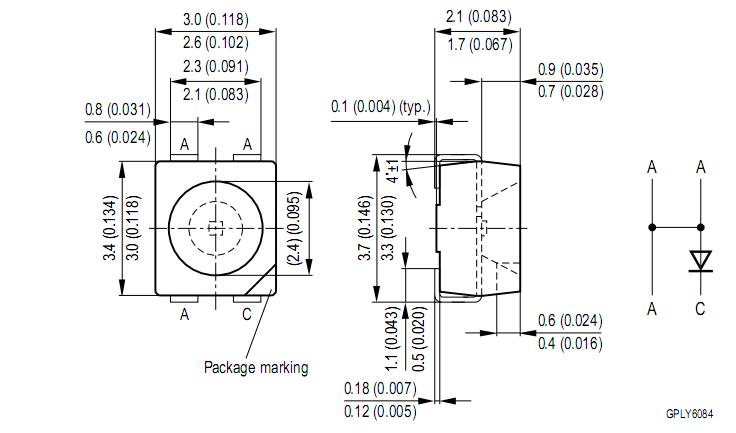

LYE6SF package dimensions
