Product Summary

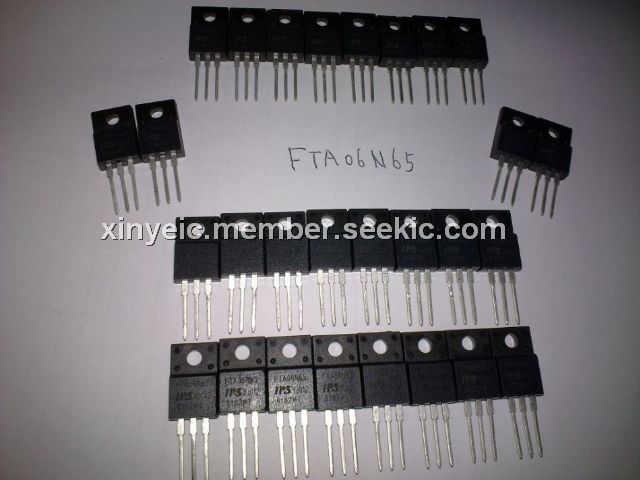

The FTA06N65 is an N-Channel MOSFET. The applications of it are Adaptor, LCD Panel Power.

Parametrics

FTA06N65 absolute maximum ratings: (1)Drain-to-Source Voltage:650V; (2)Continuous Drain Current:6.0A; (3)Power Dissipation:31W; (4)Derating Factor above 25℃:0.25W/℃; (5)Gate-to-Source Voltage:±30V; (6)Single Pulse Avalanche Engergy:320mJ; (7)Operating Junction and Storage Temperature Range:-55 to 150℃.

Features

FTA06N65 features: (1)Lead Free; (2)Low ON Resistance; (3)Low Gate Charge; (4)Peak Current vs Pulse Width Curve; (5)Inductive Switching Curves.

Diagrams

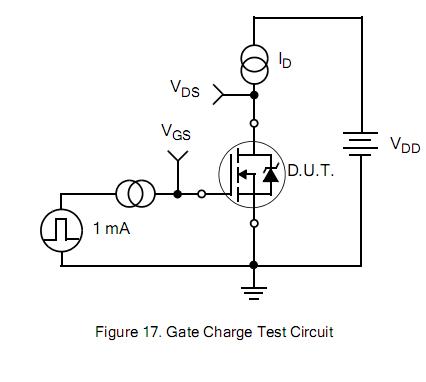

FTA06N65 circuit diagram

FTA0102AA
FTA0102AA

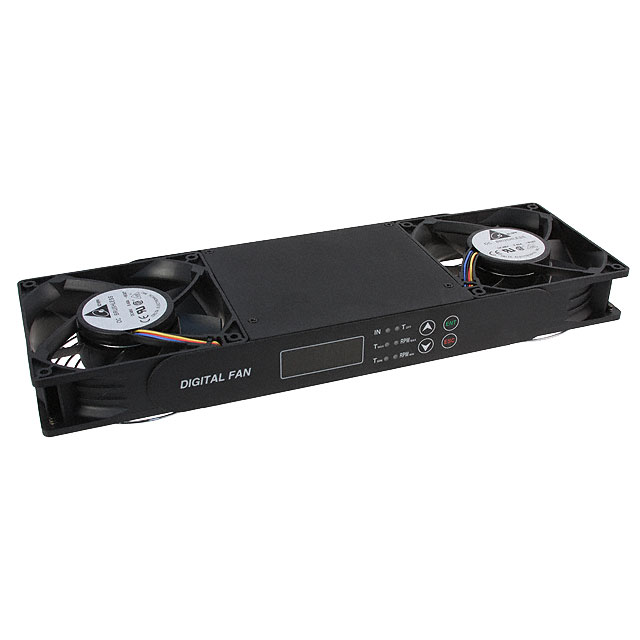

FAN TRAY AC 380X43 1800/3800RPM

Data Sheet

0-1: $133.95
1-10: $122.55
10-25: $102.60
25-50: $94.05
50-100: $82.65
100-250: $76.95
250-500: $71.25
500-1000: $68.40
FTA0302AA
FTA0302AA

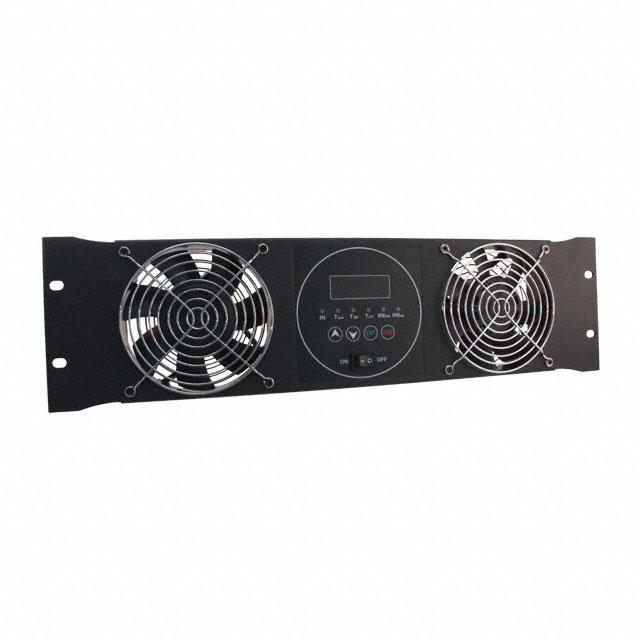

FAN TRAY AC 484X49 1800/3800RPM
