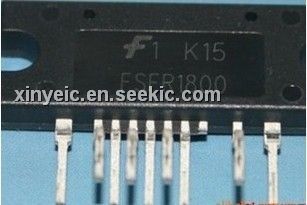

FSFR1800XSL

Product Summary

The FSFR1800XSL is a Fairchild Power Switch includes highly integrated power switches designed for high-efficiency half-bridge resonant converters. Offering everything necessary to build a reliable and robust resonant converter, the FSFR1800XSL simplifies designs while improving productivity and performance. The FSFR1800XSL combines power MOSFETs with fast-recovery type body diodes, a highside gate-drive circuit, an accurate current controlled oscillator, frequency limit circuit, soft-start, and built-in protection functions. The applications of the FSFR1800XSL include PDP and LCD TVs, Desktop PCs and Servers, Adapters, Telecom Power Supplies.

Parametrics

FSFR1800XSL absolute maximum ratings: (1)VDS, Maximum Drain-to-Source Voltage (VDL-VCTR and VCTR-PG): 500 V; (2)LVCC, Low-Side Supply Voltage: -0.3 to 25.0 V; (3)HVCC, to VCTR High-Side VCC Pin to Low-Side Drain Voltage: -0.3 to 25.0 V; (4)HVCC, High-Side Floating Supply Voltage: -0.3 to 525.0 V; (5)VAR, Auto-Restart Pin Input Voltage: -0.3 to LVCC V; (6)VCS, Current-Sense (CS) Pin Input Voltage: -5.0 to 1.0 V; (7)VRT, RT Pin Input Voltage: -0.3 to 5.0 V; (8)dVCTR/dt, Allowable Low-Side MOSFET Drain Voltage Slew Rate: 50 V/ns; (9)PD, Total Power Dissipation: 11.7W; (10)TJ, Maximum Junction Temperature(4) +150℃; (11)TJ, Recommended Operating Junction Temperature(4): -40 to +130℃; (12)TSTG, Storage Temperature Range: -55 to +150℃.

Features

FSFR1800XSL features: (1)Variable Frequency Control with 50% Duty Cycle for Half-Bridge Resonant Converter Topology; (2)High Efficiency through Zero Voltage Switching (ZVS); (3)Internal UniFET. with Fast-Recovery Body Diode; (4)Fixed Dead Time (350ns) Optimized for MOSFETs; (5)Up to 300kHz Operating Frequency; (6)Auto-Restart Operation for All Protections with External LVCC; (7)Protection Functions: Over-Voltage Protection (OVP), Over-Current Protection (OCP), Abnormal Over-Current Protection (AOCP), Internal Thermal Shutdown (TSD).

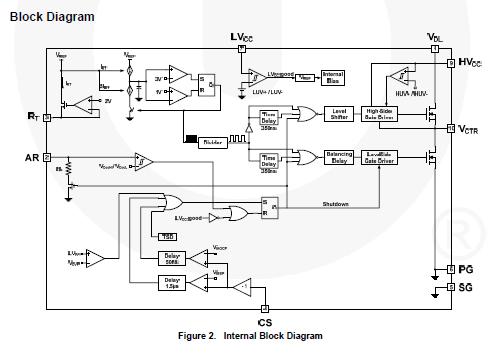

Diagrams
