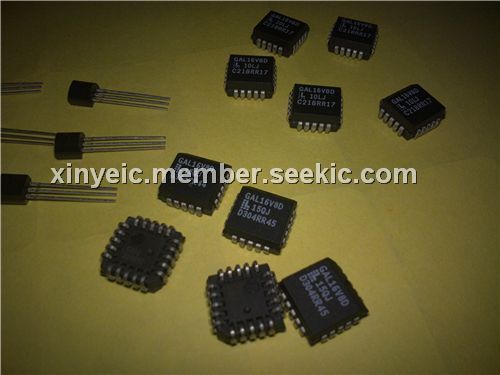

Product Summary
The GAL16V8D-15QJ is a High Performance E2CMOS PLD, at 3.5 ns maximum propagation delay time, combines a high performance CMOS process with Electrically Erasable (E2) floating gate technology to provide the highest speed performance available in the PLD market. High speed erase times (<100ms) allow the devices to be reprogrammed quickly and efficiently.
Parametrics
Absolute maximum ratings: (1)Supply voltage VCC: –0.5 to +7V; (2)Input voltage applied: –2.5 to VCC +1.0V; (3)Off-state output voltage applied: –2.5 to VCC +1.0V; (4)Storage Temperature: –65 to 150℃; (5)Ambient Temperature with Power Applied:. –55 to 125℃.
Features
Features: (1)high performance E2CMOS technology; (2)50% to 75% reduction in power from bipolar; (3)active pull-ups on all PINS; (4)E2 cell technology; (5)eight output logic macrocells; (6)preload and power-on reset of all registers; (7)electronic signature for identification.

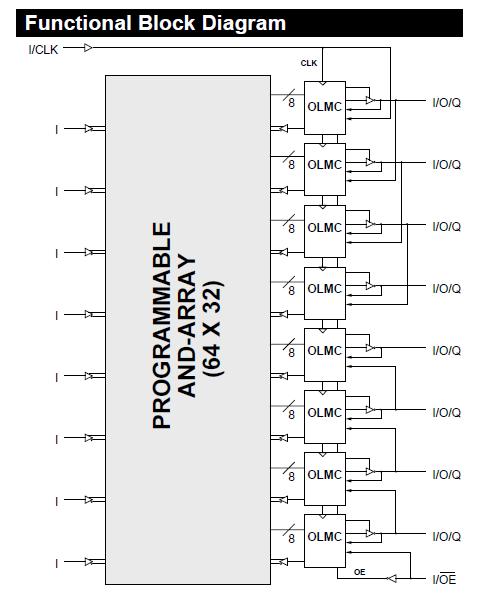

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 GAL16V8D-15QJ |
Lattice |
SPLD - Simple Programmable Logic Devices 5V 16 I/O |
Data Sheet |
|
|
||||||
|
GAL16V8D-15QJN |
Lattice |
SPLD - Simple Programmable Logic Devices 16 Input 8 Output 5V 1/4 Power 15ns |
Data Sheet |
|
|
||||||
