Product Summary

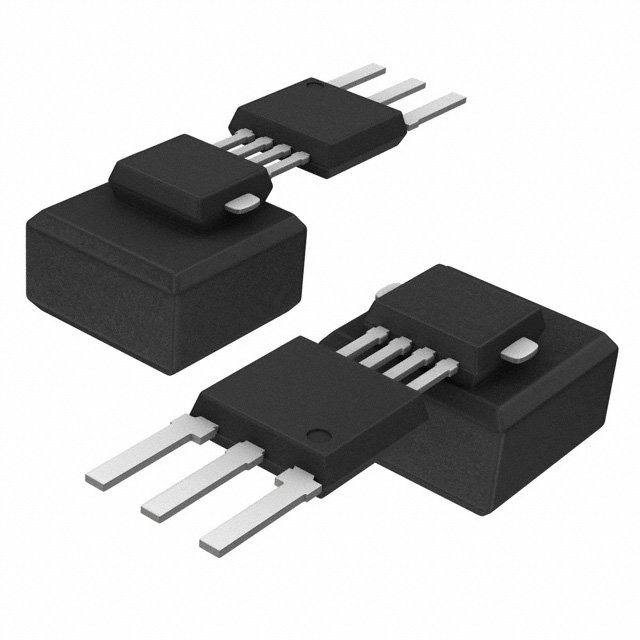

The KMI16/1 sensor detects rotational speed of ferrous gear wheels and reference marks.The KMI16/1 consists of a magnetoresistive sensor element, a signal conditioning integrated circuit in bipolar echnology and a ferrite magnet.The open collector (OC) output of the KMI16/1allows for a high degree of flexibility in the design of subsequent conditioning electronics.
Parametrics
KMI16/1 absolute maximum ratings: (1) DC operating supply voltage Vcc, Tam=-40 to +150°C: 4.5V to 16V; (2) voltage pin, Tamb= -40to+150°C ; no wrong polarity protection: -0.5 to +16V; (3) OC output voltage VOUT, Tamb=-40 to +150°C;no wrong polarity protection: -0.5V to +16V; (4) peak OCoutput voltage Vout (max) Tamb = -40to+40°C; no wrong polarity protection: -0.5 to +26.5V; (5) OC output current Iout (max) , Tamb=-40 to +150°C: 20mA; (6) OC output leakage current Tamb=-40 to +150°C: 100μA; (7) soldering temperature t≤10s, Tsld: 260°C; (8) storage temperature Tstg: -65 to +150°C; (9) ambient operating temperature: -40 to +150°C.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 KMI16/1 T/R |
NXP Semiconductors |
Speed Sensors SNSR MAGNETIC TAPE-7 |
Data Sheet |
Negotiable |
|
||||||||||||
 |
KMI16/1,115 |
NXP Semiconductors |
Speed Sensors SNSR MAGNETIC TAPE-7 |
Data Sheet |
|
|
||||||||||||
