Product Summary

The LCB110 is a 1-Form-B relay which uses optically coupled MOSFETtechnology to provide 3750V of input to output isolation.The LCB110 has low on resistance and is well suited for most applications requiring a normally closed relay.The LCB110 is availabe in small 6-pin dual in line package in standard though hole and surface mount lead bend. Applications of the LCB110 include: Telecommunications, Telecom Switching, Tip/Ring Circuits, Modem Switching (Laptop, Notebook, Pocket Size) , Hookswitch, Dial Pulsing, Ground Start, Instrumentation, Multiplexers, Data Acquisition, Medical Equipment-Patient/Equipment Isolation, Security, Aerospace, Industrial Controls.

Parametrics

LCB110 absolute maximum ratings: (1) Input Power Dissipation: 150mW; (2) Input Control Current: 50mA; (3) Peak (10ms) : 1A; (4) Reverse Input Voltage: 5V; (5) Total Power Dissipation: 800mW; (6) Isolation Voltage Input to Output: 3750Vrms; (7) Operational Temperature: -40 to +85°C; (8) Storage Temperature: -40 to +125°C; (9) Soldering Temperature DIP Package: +260°C; (10) Surface Mount Package 10 Seconds Max.) : +220°C.

Features

LCB110 features: (1) Small 6 Pin DIP Package; (2) Low Drive Power Requirements (TTL/CMOS Compatible); (3) No Moving Parts; (4) High Reliability; (5) 3750VRMS Input/Output Isolation; (6) FCC Compatible; (7) VDE Compatible; (8) No EMI/RFI Generation; (9) Machine Insertable, Wave Solderable; (10) Surface Mount and Tape & Reel Versions Available.

Diagrams

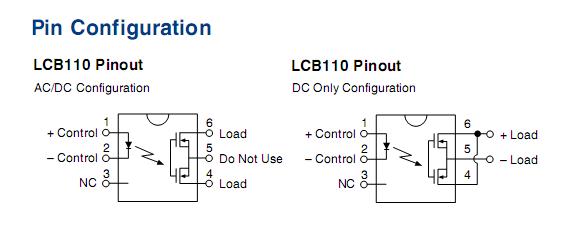

LCB110 Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

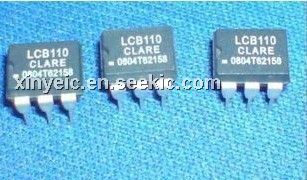

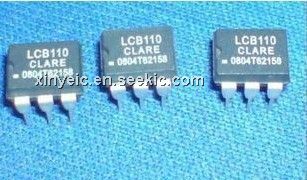

LCB110
LCB110
Clare
Solid State Relays SPST-NC 6 Pin DIP 350V 120mA
Data Sheet
Negotiable
LCB110S
LCB110S
Clare
Solid State Relays SPST-NC 6 Pin SMT 350V 120mA
Data Sheet
Negotiable
LCB110STR
LCB110STR
Clare
Solid State Relays 1-Form-B relay with an optically coupled MOSFET
Data Sheet
Negotiable
