Product Summary
The LM337 is an adjustable 3–terminal negative voltage regulator capable of supplying in excess of 1.5 A over an output voltage range of -1.2 V to -37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, the LM337 employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow-out proof. The device serves a wide variety of applications including local, on card regulation. The LM337 can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM337 can be used as a precision current regulator.
Parametrics
LM337 absolute maximum ratings: (1)Input–Output Voltage Differential, VI–VO: 40 Vdc; (2)Operating Junction Temperature Range, TJ: –40 to +125℃; (3)Storage Temperature Range, Tstg: –65 to +150℃.
Features
LM337 features: (1)Output Current in Excess of 1.5 A; (2)Output Adjustable between –1.2 V and –37 V; (3)Internal Thermal Overload Protection; (4)Internal Short Circuit Current Limiting Constant with Temperature; (5)Output Transistor Safe–Area Compensation; (6)Floating Operation for High Voltage Applications; (7)Eliminates Stocking many Fixed Voltages; (8)Available in Surface Mount D2PAK and Standard 3–Lead Transistor Package.

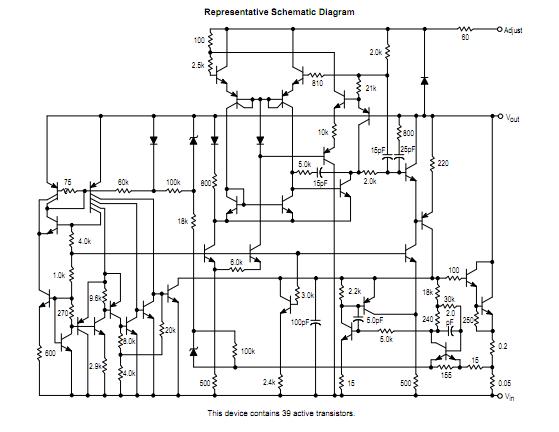

Diagrams
