LS7262

LS7262, brushless DC motor commutator/controller, DIP, -30 to +5 V, 6mA, LSI Computer Systems

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 20 :	2.40 / Piece
20 ~ 50 :	2.00 / Piece
50 ~ 100 :	1.80 / Piece

PartNumber:: LS7262

Brand:: LSI Computer Systems - LC | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 0/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. yoyo's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-21

From Other Seller

Part Number:LS7262
US $1.80 - 2.40
Quantity:

piece

Product Summary

The LS7262 is a brushless DC motor commutator/controller designed to generate the signals necessary to control a three phase or four phase brushless DC motor. The device is a basic building block of a brushless DC motor controller. The LS7262 responds to changes at the SENSE inputs, originating at the motor position sensors, to provide electronic commutation of the motor windings. Pulse Width Modulation of outputs for motor speed control is accomplished through either the ENABLE input or through the Analog input (VTRIP) in conjunction with the OSCILLATOR input.

Parametrics

LS7262 absolute maximum ratings: (1)Storage Temperature, TSTG: -65 to +150℃; (2)Operating Temperature, TA: -25 to +85℃; (3)TA: -40℃ to +125℃; (4)Voltage (any pin to Vss), VMAX: -30 to +5 V.

Features

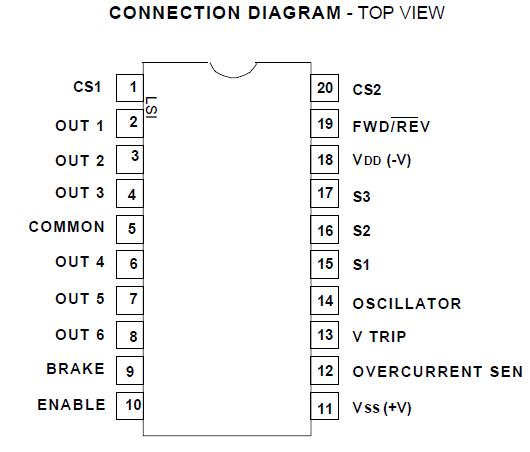

LS7262 features: (1)Direct drive of P-Channel and N-Channel FETs (LS7260); (2)Direct drive of PNP and NPN transistors (LS7262); (3)Six outputs drive power switching bridge directly; (4)Open or closed loop motor speed control; (5)+5V to +28V operation (Vss - VDD); (6)Externally selectable input to output code for 60° 120° 240° or 300° electrical sensor spacing; (7)Three or four phase operation; (8)Analog Speed control; (9)Direction control; (10)Output Enable control; (11)Positive Static Braking; (12)Overcurrent Sensing; (13)LS7260, LS7262 (DIP); LS7260-S, LS7262-S (SOIC) LS7260-TS, LS7262-TS (TSSOP) - See Connection Diag.
