Product Summary
The MC679P is a Programmable Logic IC, especially designed to meet the requirements of industrial applications because of the outstanding noise immunity. MHTL circuit provides error-free operation in high noise environments far beyond the tolerance of other integrated circuit families. Multifuntion packages and broad operating temperature range further tailor the MC679P to the industrial designer’s requirements.
Parametrics
MC679P absolute maximum ratings: (1)Power supply voltage, VCC: 18V; (2)Input voltage, vIN: -1.0 to 6V; (3)Output current: 30mA; (4)Input reverse current @18V, IR: 0.5mA; (5)Forward current, IF: 30mA; (6)Operating temperature range, TA: -30 to 75℃; (7)Storage temperature range, Tstg: -55 to 125℃.

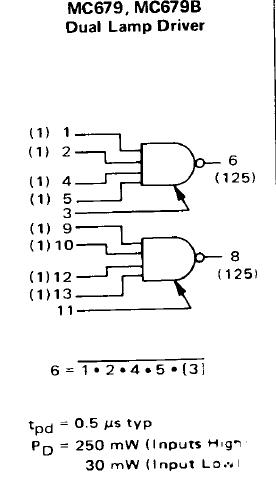

Diagrams
