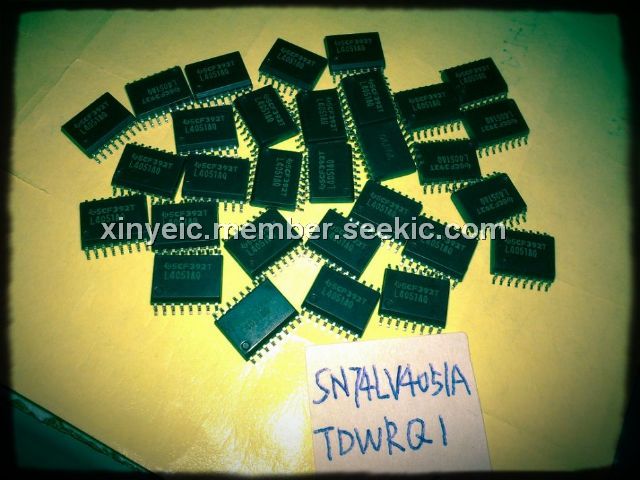

SN74LV4051ATDWRQ1

8-channel, CMOS, analog multiplexer, 2V to 5.5V VCC, sop 16 pin, ±25mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.20~1.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.20~1.30

PartNumber:: SN74LV4051ATDWRQ1

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. yoyo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-23

From Other Seller

Part Number:SN74LV4051ATDWRQ1
US $1.20 - 1.30
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 8-channel CMOS analog multiplexer SN74LV4051ATDWRQ1 is designed for 2V to 5.5V VCC operation. The SN74LV4051ATDWRQ1 device handles both analog and digital signals. Each channel permits signals with amplitudes up to 5.5 V (peak) to be transmitted in either direction. Applications of SN74LV4051ATDWRQ1 include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-toanalog conversion systems.

Parametrics

SN74LV4051ATDWRQ1 absolute maximum ratings: (1)Supply voltage range, VCC: -0.5V to 7.0V; (2)Input voltage range, VI: -0.5V to 7.0V; (3)Switch I/O voltage range, VIO: -0.5V to VCC+0.5V; (4)Input clamp current, IIK (VI < 0): -20mA; (5)I/O diode current, IIOK (VIO < 0): -50mA; (6)Switch through current, IT (VIO = 0 to VCC): ±25mA; (7)Continuous current through VCC or GND: ±50mA.

Features

SN74LV4051ATDWRQ1 features: (1)2V to 5.5V VCC Operation; (2)Support Mixed-Mode Voltage Operation on All Ports; (3)High On-Off Output-Voltage Ration; (4)Low Crosstalk Between Switches; (5)Individual Switch Controls; (6)Extremely Low Input Current; (7)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (8)ESD Protection Exceeds JESD 22.
