Product Summary
The MRF7S15100HR3 is an N-channel enhancement -mode lateral MOSFET which is designed for CDMA base station applications with frequencies from 1470 to 1510 MHz for TDMA, CDMA and multicarrier amplifier applications. The MRF7S15100HR3 is used in Class AB and Class C for PCN-PCS/cellular radio and WLL applications.
Parametrics
MRF7S15100HR3 absolute maximum ratings: (1)Drain-Source Voltage VDSS: -0.5, +65 Vdc; (2)Gate-Source Voltage VGS :-6.0, +10 Vdc; (3)Operating Voltage VDD: 32, +0 Vdc; (4)Storage Temperature Range Tstg: - 65 to +150 ℃; (5)Case Operating Temperature TC: 150℃; (6)Operating Junction Temperature (1): 225 ℃.
Features
MRF7S15100HR3 features: (1)100% PAR Tested for Guaranteed Output Power Capability; (2)Characterized with Series Equivalent Large-Signal Impedance Parameters; (3)Internally Matched for Ease of Use; (4)Integrated ESD Protection; (5)Greater Negative Gate-Source Voltage Range for Improved Class C; (6)Operation; (7)Optimized for Doherty Applications; (8)RoHS Compliant; (9)In Tape and Reel. R3 Suffix = 250 Units per 56 mm, 13 inch Reel.

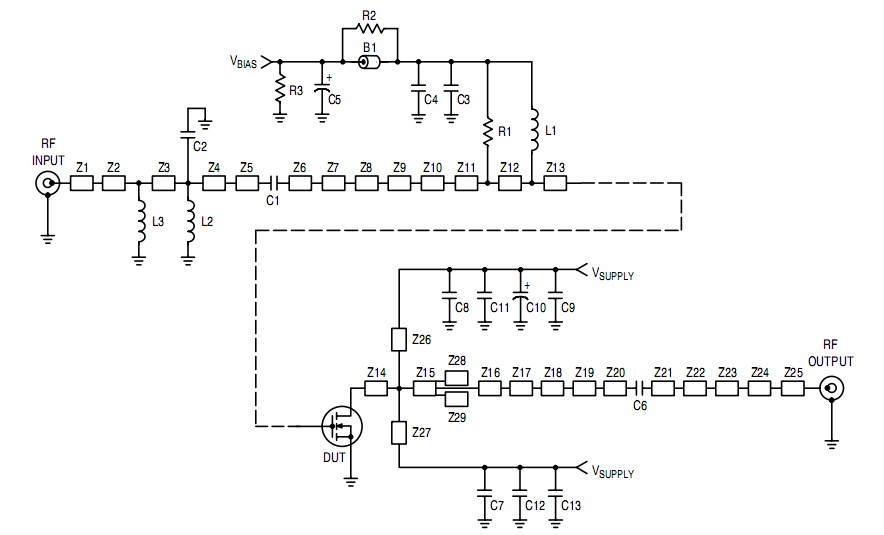

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF7S15100HR3 |
Freescale Semiconductor |
Transistors RF MOSFET Power HV7 1.5GHZ 28V 23W NI780 |
Data Sheet |
|
|
||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||
 |
MRF7P20040HR3 |
Freescale Semiconductor |
Transistors RF MOSFET Power HV7 2GHZ 40W NI780H-4 |
Data Sheet |
|
|
||||||||
|
MRF7P20040HR5 |
Freescale Semiconductor |
Transistors RF MOSFET Power HV7 2GHZ 40W NI780H-4 |
Data Sheet |
Negotiable |
|
||||||||
|
MRF7P20040HSR5 |
Freescale Semiconductor |
Transistors RF MOSFET Power HV7 2GHZ 40W NI780HS-4 |
Data Sheet |
Negotiable |
|
||||||||
|
MRF7S15100HR3 |
Freescale Semiconductor |
Transistors RF MOSFET Power HV7 1.5GHZ 28V 23W NI780 |
Data Sheet |
|
|
||||||||
|
MRF7S15100HR5 |
Freescale Semiconductor |
Transistors RF MOSFET Power HV7 1.5GHZ 28V 23W NI780 |
Data Sheet |
Negotiable |
|
||||||||
|
MRF7S15100HSR3 |
Freescale Semiconductor |
Transistors RF MOSFET Power HV7 1.5GHZ 28V23W NI780S |
Data Sheet |
|
|
||||||||
