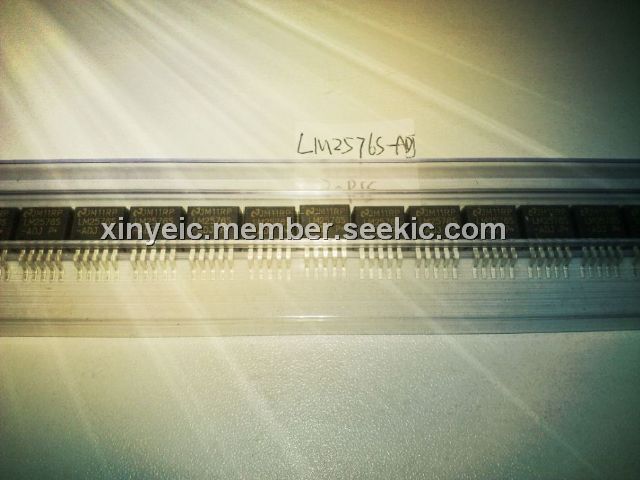

LM2576S-ADJ

3A Step-Down Voltage Regulator, TO-263, High efficiency, 52 kHz, fixed frequency internal oscillator

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.40

PartNumber:: LM2576S-ADJ

Brand:: National Semiconductor - NS | Pack: TO | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. yoyo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-19

From Other Seller

Part Number:LM2576S-ADJ
US $0.30 - 0.40
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The Bay Linear LM2576S-ADJ contains fixed and adjustable switching voltage regulators that require a minimum of external components. All circuitry necessary to build a buck-switching regulator is included. The LM2576S-ADJ is available in 3.3V; 5V, 12V & 15V fixed voltages, or an adjustable version with an output voltage range from 1.23V to 37V. The guaranteed accuracy for specified input and load conditions is ±4%. The LM2576S-ADJ can supply 3A with an excellent load and line regulation. Protection such as cycle-by-cycle current limiting or thermal shutdown has been designed. In standby mode, the current consumption has been minimized (200μA).

Parametrics

LM2576S-ADJ absolute Maximum Ratings: (1)Maximum Input Voltage, VIN: 45 V; (2)Power Dissipation, PO: Internally Limited W; (3)Off Pin Input Voltage: -0.3V<V<VIN; (4)Output Voltage: -1 V; (5)Supply Voltage: 40 V; (6)Operating Junction Temperature Range Control Section Power Transistor, TJ: -40<TJ<85℃; (7)Storage Temperature Range, TSTG: -65 to 150℃; (8)Lead Temperature (Soldering 10 Sec.), TLEAD: 260℃.

Features

LM2576S-ADJ features: (1)Guaranteed 3A Output Current; (2)High Efficiency; (3)Wide Input Voltage, up to 40V; (4)3.3V, 5V, 12V, 15V and Adjustable Output Versions; (5)Thermal Shutdown and Current Limit Protection; (6)Requires only 4 External Components; (7)Low Power Standby Mode < 200μA Typical; (8)Shutdown Capability (Standby Mode); (9)52kHz Fixed Frequency Internal Oscillator; (10)Uses Standard Inductors; (11)Pin-to-Pin Compatible with LM2576.
