Product Summary

The SAP16NY is a Built-in temperature compensation diode.

Parametrics

SAP16NY absolute maximum ratings: (1)VCBO: 160V; (2)VCEO: 160V; (3)VEBO: 5V; (4)IC: 15A; (5)IB: 1A; (6)PC: 150W; (7)Dilr: 10mA; (8)Tj: 150℃; (9)Tstg: -40 to 150℃.

Features

SAP16NY features: (1)VCB=160V, ICBO: 100μA; (2)VEB=5V, IEBO: 100μA; (3)IC=30mA, VCEO: 160V; (4)VCE=4V, IC=10A, hEF: 5000 to 20000; (5)IC=10A, IB=10mA, VCE: 2.0V; (6)IC=10A, IB=10mA, VBE: 2.5V; (7)VCE=20V, IC=40mA, VBE: 1190mV; (8)IF=2.5mA, DiVr: 705mV; (9)IE=1A, RE: 0.176 to 0.264Ω; (10)REB: 90 to 110Ω.

Diagrams

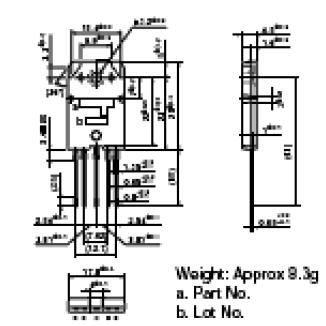

SAP16NY block diagram
