Product Summary

The SAP16Py is a Built-in temperature compensation diode.

Parametrics

SAP16Py absolute maximum ratings: (1)VCBO: -160V; (2)VCEO: -160V; (3)VEBO: -5V; (4)IC: -15A; (5)IB: -1A; (6)PC: 150W; (7)Dilr: 10mA; (8)Tj: 150℃; (9)Tstg: -40 to 150℃.

Features

SAP16Py features: (1)VCB=-160V, ICBO: -100μA; (2)VEB=-5V, IEBO: -100μA; (3)IC=-30mA, VCEO: -160V; (4)VCE=-4V, IC=-10A, hEF: 5000 to 20000; (5)IC=-10A, IB=-10mA, VCE: -2.0V; (6)IC=-10A, IB=-10mA, VBE: -2.5V; (7)VCE=-20V, IC=-40mA, VBE: 1190mV; (8)IF=2.5mA, DiVr: 705mV; (9)IE=1A, RE: 0.176 to 0.264Ω; (10)REB: 90 to 110Ω.

Diagrams

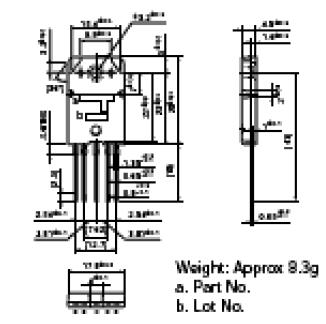

SAP16Py block diagram
