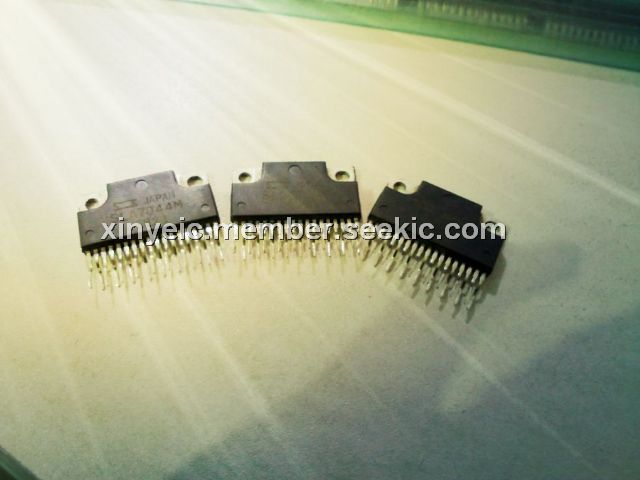

Product Summary
The SLA7044M is a 2-Phase Stepper Motor Unipolar Driver IC.
Parametrics
SLA7044M absolute maximum ratings: (1)Motor supply voltage VCC: 46 V; (2)FET Drain-Source voltage VDSS: 100 V; (3)Control supply voltage VDD: 7 V; (4)Input voltage VIN: -0.5 to VDD+0.5 V; (5)Output current IO: 3 A; (6)Power dissipation PD: 4.5 (Without Heatsink) W; (7)Channel temperature Tch: +150 ℃; (8)Storage temperature Tstg: -40 to +150 ℃.
Features
SLA7044M features: (1)Control supply current: 7mA; (2)Control supply voltage: 5V; (3)FET ON voltage: 1.4V; (4)FET Drain-Source voltage: 100V; (5)FET drain leakage current: 4mA; (6)Chopper off time: 7μS; (7)Switching time: 11μS.

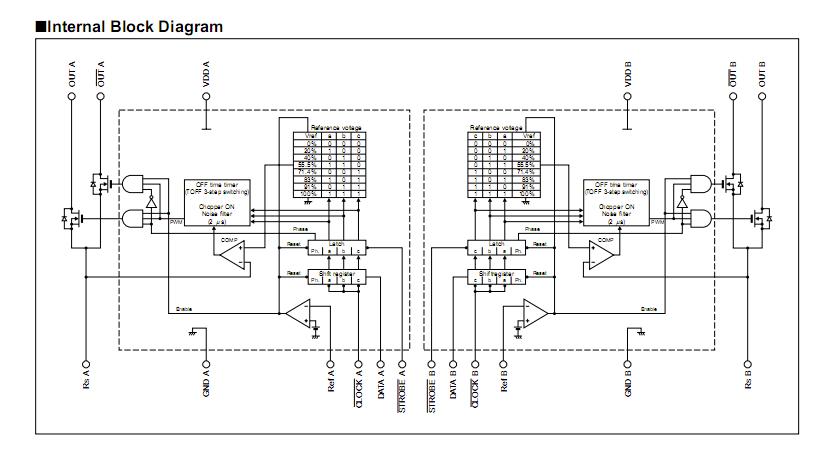

Diagrams
