Product Summary
The STV9302A is a vertical deflection booster designed for TV and monitor applications. This device, supplied with up to 35 V, provides up to 2 App output current to drive the vertical deflection yoke. The internal flyback generator delivers flyback voltages up to 70 V.
Parametrics
STV9302A absolute maximum ratings: (1)Supply Voltage (pin 2) - Note 1 and Note 2: 40 V; (2)Flyback Peak Voltage - Note 2: 70 V; (3)Voltage at Pin 3 - Note 2, Note 3 and Note 6: -0.4 to (VS + 3) V; (4)Amplifier Input Voltage - Note 2, Note 6 and Note 7: - 0.4 to (VS + 2) or +40 V; (5)Output Peak Current at f = 50 to 200 Hz, t ≤ 10μs - Note 4: ±5 A; (6)Output Peak Current non-repetitive - Note 5: ±2 A; (7)Sink Current, t<1ms - Note 3: 1.5 A; (8)Source Current, t < 1ms: 1.5 A; (9)Flyback pulse current at f=50 to 200 Hz, t≤10μs - Note 4: ±5 A; (10)Storage Temperature: -40 to 150℃; (11)Junction Temperature: +150 ℃.
Features
STV9302A features: (1)Power Amplifier; (2)Flyback Generator; (3)Output Current up to 2 App; (4)Thermal Protection; (5)Stand-by Control.

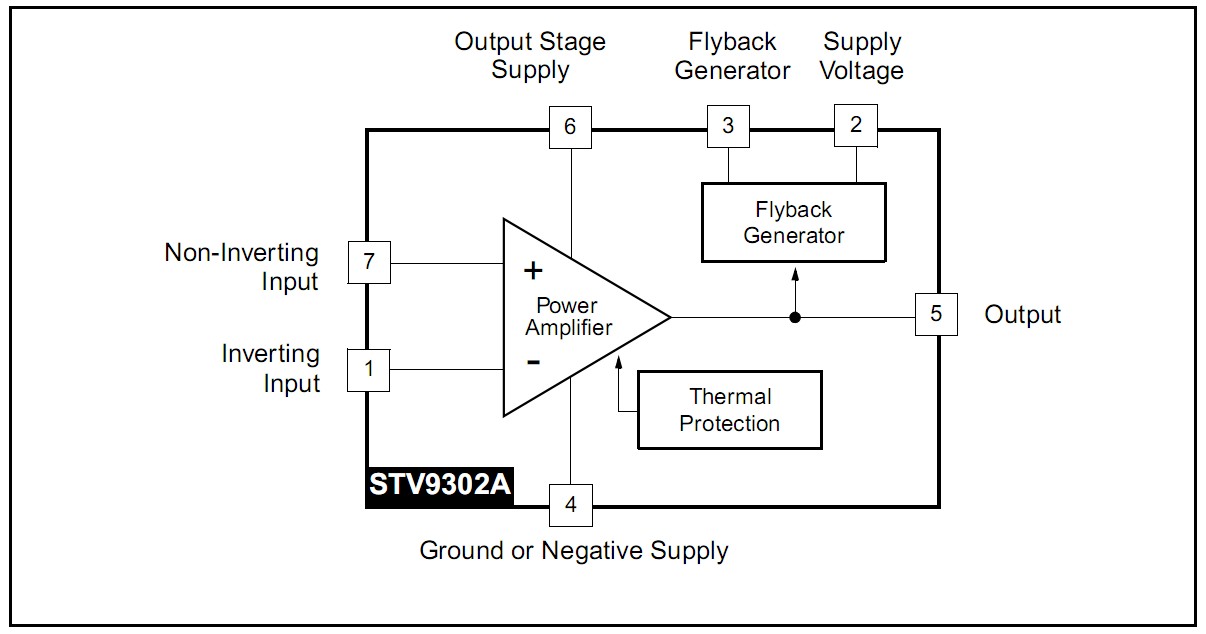

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STV9302A |
Other |
|
Data Sheet |
Negotiable |
|
||||||
