Product Summary
The TDA3654 is a vertical deflection and guard circuit. The TDA3654 is a full performance vertical deflection output circuit for direct drive of the deflection coils and can be used for a wide range of 90° and 110° deflection systems. A guard circuit is provided which blanks the picture tube screen in the absence of deflection current.
Parametrics
TDA3654 absolute maximum ratings: (1)Output voltage V5-2 max.: 60 V; (2)Output current (peak-to-peak) I5(p-p) max.: 3 A; (3)Supply voltage V9-2 max.: 40 V; (4)Guard circuit output voltage V7-2 max.: 5,6 V; (5)Operating ambient temperature range Tamb: -25 to +60 ℃; (6)Storage temperature Tstg: -55 to +150 ℃.
Features
TDA3654 features: (1)Direct drive to the deflection coils; (2)90° and 110° deflection system; (3)Internal blanking guard circuit; (4)Internal voltage stabilizer.

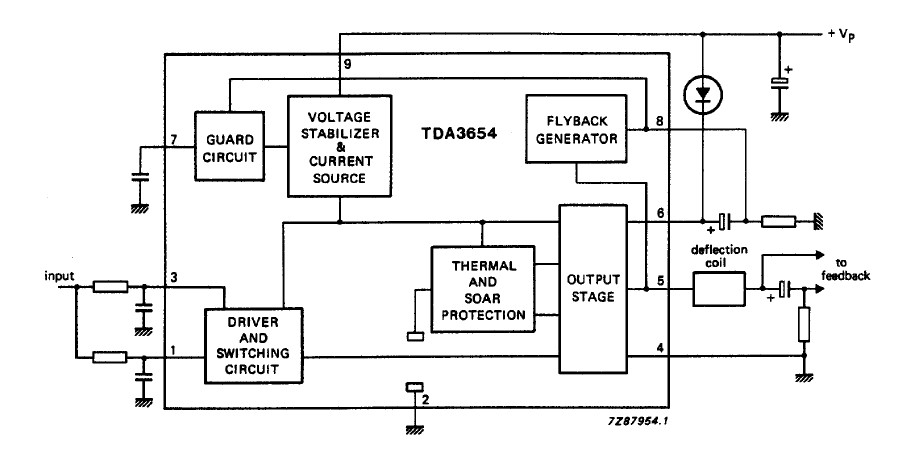

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA3654Q |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TDA3654 |
Other |
|
Data Sheet |
Negotiable |
|
||||
