UA741HC

UA741HC, general-purpose operational amplifier, CAN, 22V, Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~0.82 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	0.82 / Piece
51 ~ 100 :	0.75 / Piece
101 ~ 500 :	0.65 / Piece

PartNumber:: UA741HC

Brand:: Fairchild Semiconductor - Fairchild | Pack: CAN | D/C: 05+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. yoyo's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-07

From Other Seller

Part Number:UA741HC
US $0.65 - 0.82
Quantity:

piece

Product Summary

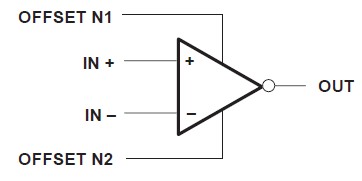

The UA741HC is a general-purpose operational amplifier featuring offset-voltage null capability. The high common-mode input voltage range and the absence of latch-up make the UA741HC ideal for voltage-follower applications. The UA741HC is short-circuit protected and the internal frequency compensation ensures stability without external components. A low value potentiometer may be connected between the offset null inputs to null out the offset voltage.

Parametrics

UA741HC absolute maximum ratings: (1)Supply voltage, VCC+: 22 V; (2)Supply voltage, VCC–: –22 V; (3)Differential input voltage, VID: ±30 V; (4)Input voltage, VI any input: ±15 V; (5)Voltage between offset null (either OFFSET N1 or OFFSET N2) and VCC–: ±0.5 V; (6)Duration of output short circuit: unlimited; (7)Operating free-air temperature range, TA: –55 to 125 ℃; (8)Storage temperature range: –65 to 150 ℃.

Features

UA741HC features: (1)Short-Circuit Protection; (2)Offset-Voltage Null Capability; (3)Large Common-Mode and Differential Voltage Ranges; (4)No Frequency Compensation Required; (5)Low Power Consumption; (6)No Latch-Up; (7)Designed to Be Interchangeable With Fairchild μA741.
