Product Summary

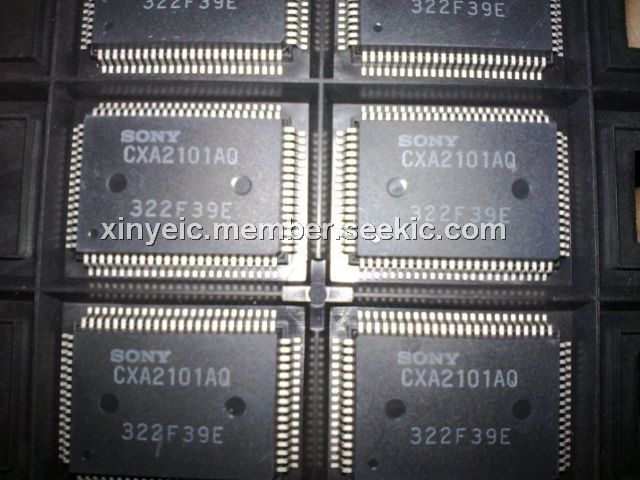

The cxa2101aq is a bipolar IC which integrates the following functions on a single chip: base band signal processing, RGB signal processing, and video switching for 4 systems (including HV sync signal processing ) using YCbCr inputs. The cxa2101aq was developed for multiscan TVs, and enables high-end TV systems to be configured.
Parametrics
cxa2101aq absolute maximum ratings: (1)Supply voltage VCC: 12 V; (2)Operating temperature Topr: –20 to +75℃; (3)Storage temperature Tstg: –65 to +150℃; (4)Allowable power dissipation PD: 2W.
Features
cxa2101aq features: (1)I2C bus compatible; (2)Multiscan supported; (3)Normal, PAL-FF, HD-TV supported; (4)On-chip video switching for 4 systems; (5)On-chip automatic sync signal identification circuit(with fixed mode); (6)On-chip sync separation circuit (HD supported); (7)On-chip CbCr input offset adjustment circuit; (8)On-chip LTI, CTI circuits; (9)On-chip AKB system; (10)YCbCr input for 1 system, external YCbCr input for 1 system; (11)Analog RGB input for 2 systems; (12)Analog RGB1 forced OFF mode supported.
