Product Summary
The sn74hc373n is an octal transparent D-type latch.
Parametrics
sn74hc373n absolute maximum ratings: (1)supply voltage range: -0.5 to 7V; (2)input clamp current: ±20mA; (3)output clamp current: ±20mA; (4)continuous output current: ±35mA; (5)continuous current: ±70mA.
Features
sn74hc373n features: (1)wide operating voltage range of 2 to 6V; (2)high-current 3-state true outputs can drive up to 15LSTTL loads; (3)low power consumption, 80μA max ICC; (4)low input current of 1μA max; (5)full parallel access for loading.

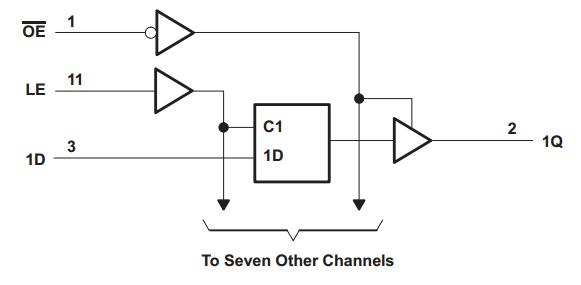

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SN74HC373N |
Texas Instruments |
Latches Tri-St Octal D-Type |
Data Sheet |
|
|
|||||||||||||
SN74HC373NE4 |
Texas Instruments |
Latches Tri-St Octal D-Type |
Data Sheet |
|
|
|||||||||||||
SN74HC373NSR |
Texas Instruments |
Latches Tri-St Octal D-Type |
Data Sheet |
|
|
|||||||||||||
SN74HC373NSRE4 |
Texas Instruments |
Latches Tri-St Octal D-Type |
Data Sheet |
|
|
|||||||||||||
SN74HC373NSRG4 |
Texas Instruments |
Latches Tri-St Octal D-Type |
Data Sheet |
|
|
