Product Summary

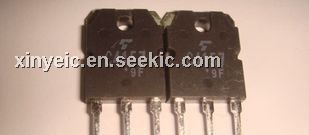

The 2SC4157 is a swithcing regulator and high voltage swithcing. The application of the 2SC4157 is high speed DC-DC converter.
Parametrics
2SC4157 maximum ratings: (1) Collector-base voltage, VCBO: 600V; (2) Collector-emitter voltage, VCEO: 450V; (3) Collector Current, DC, IC: 10A, Pulse, ICP: 20A; (4) Base Current, IB: 5A; (5) Collector Power Dissipation (Tc=25°C) , PC: 100W; (6) Junction Temperature, Tj: 150°C; (7) Storage Temperature, Tstg: -55 to 150°C.
Features
2SC4157 features: (1) high speed swithcing: tr: 0.5μs (Max.) , tf=0.5μS (Max.) (IC=5A) ; (2) high collector breakdown voltage: VCEO=450V.

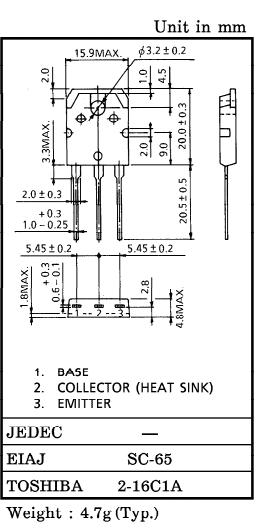

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

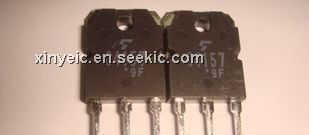

 2SC4157 |
Other |
|
Data Sheet |
Negotiable |
|
||||
