Product Summary

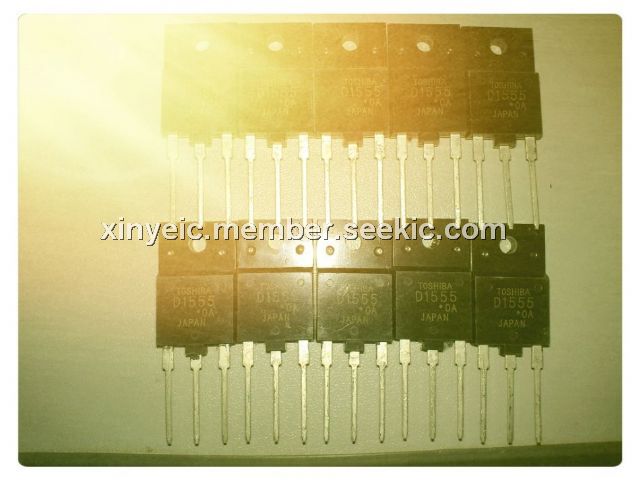

The 2SD1555 is the silicon NPN power transistor which is designed for color TV horizontal output applications.
Parametrics
2SD1555 absolute maximum ratings: (1)Collector-base voltage, Open emitter: 1500 V; (2)Collector-emitter voltage, Open base: 600 V; (3)Emitter-base voltage, Open collector: 5 V; (4)Collector current: 5 A; (5)Base current: 2.5 A; (6)Collector power dissipation, TC=25℃: 50 W; (7)Junction temperature: 150 ℃; (8)Storage temperature: -55~150 ℃.
Features
2SD1555 features: (1)With TO-3P(H)IS package; (2)Built-in damper diode; (3)High voltage ,high speed; (4)Low collector saturation voltage.
