Product Summary

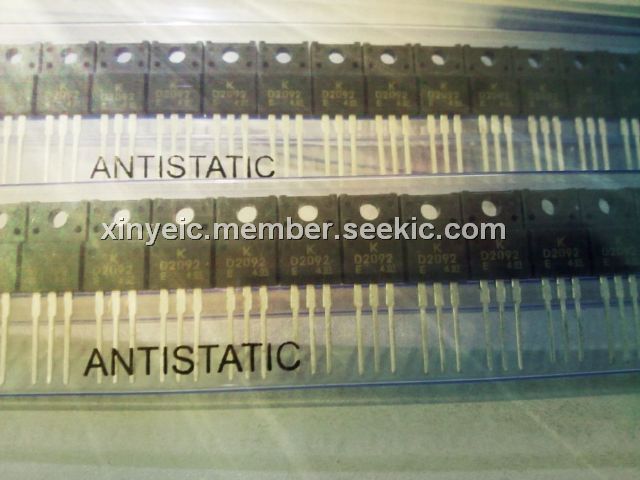

The 2SD2092 is a Transistor. It is a Silicon NPN Epitaxial Type. The device is designed for Switching Applications, Lamp, Solenoid Drive Applications.
Parametrics
2SD2092 absolute maximum ratings: (1)Collector-base voltage VCBO: 100 V; (2)Collector-emitter voltage VCEO: 100 V; (3)Emitter-base voltage VEBO: 7 V; (4)Collector current DC IC: 3 A; Pulse ICP: 5 A; (5)Base current IB: 1 A; (6)Collector power dissipation PC: 2.0 W at Ta = 25℃, 25W at Tc = 25℃; (7)Junction temperature Tj: 150 ℃; (8)Storage temperature range Tstg: -55 to 150 ℃.
Features
2SD2092 features: (1)High DC current gain: hFE = 500 to 1500; (2)Low collector saturation voltage: VCE (sat) = 0.3 V (max).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SD2092 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
