Product Summary

The 2SK3523 is an N-Channel enhancement mode power MOSFET. Applications of the 2SK3523 include: switching.

Parametrics

2SK3523 absolute maximum ratings: (1) Drain-Source Voltage VDS: 500V, VDSX: 500V; (2) Continuous Drain Current ID: ±21A; (3) Pulsed Drain Current IDP: ±84A; (4) Gate-Source Voltage VGS: ±30V; (5) Maximum Avalanche Current IAS: 21A; (6) Maximum Avalanche Energy EAS: 400mJ; (7) Maximum Power Dissipation PD: 3.125W, 120W; (8)Operating and Storage Tch: 150°C, Temperature range: -55 to +150°C; (9)Isolation Voltage VISo: 2kVrms.

Diagrams

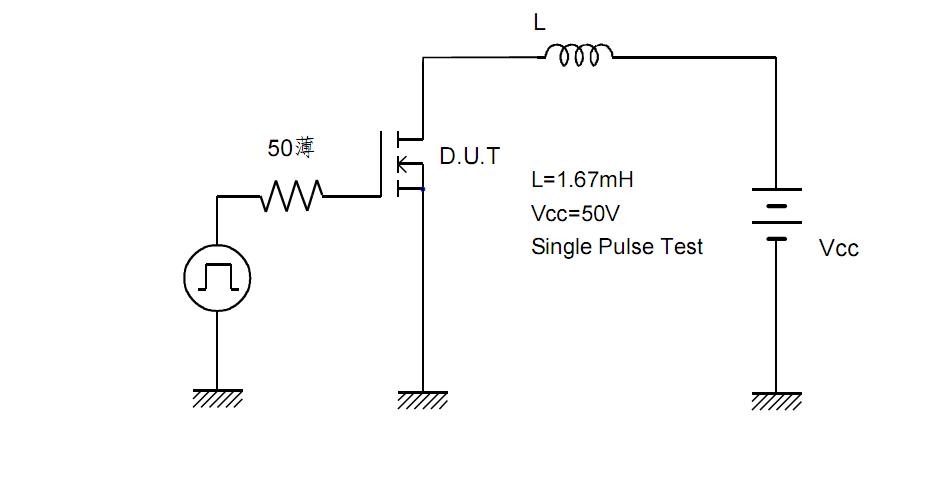

2SK3523 Test Circuit
