4N33

4N33, general purpose 6-pin photodarlington optocoupler, DIP, 5V, 250mW, 150mA, Motorola, Inc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.18~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
50 ~ 200 :	0.20 / Piece
201 ~ 300 :	0.19 / Piece
301 ~ 600 :	0.18 / Piece

PartNumber:: 4N33

Brand:: Motorola, Inc - Motorola | Pack: DIP | D/C: 05+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. yoyo's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-25

From Other Seller

Part Number:4N33
US $0.18 - 0.20
4N33-X009T

US $0.10 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

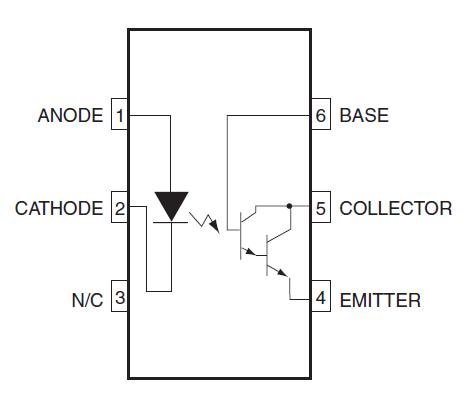

The 4N33 is a general purpose 6-pin photodarlington optocoupler. The 4N33 has a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington. The applications of the 4N33 include Low power logic circuits, Telecommunications equipment, Portable electronics, Solid state relays, Interfacing coupling systems of different potentials and impedances.

Parametrics

4N33 absolute maximum ratings: (1)Storage Temperature, TSTG: -55 to +150℃; (2)Operating Temperature, TOPR: -55 to +100℃; (3)Lead Solder Temperature, TSOL: 260 for 10 sec℃; (4)Total Device Power Dissipation @ TA = 25℃, PD: 250 mW; Derate above 25℃, PD: 3.3 mW/℃; (5)Continuous Forward Current, IF: 80 mA; (6)Reverse Voltage, VR: 3 V; (7)Forward Current - Peak (300μs, 2% Duty Cycle), IF(pk): 3.0 A; (8)LED Power Dissipation @ TA= 25℃, PD: 150 mW; Derate above 25℃, PD: 2.0 mW/℃; (9)Collector-Emitter Breakdown Voltage, BVCEO: 30 V; (10)Collector-Base Breakdown Voltage, BVCBO: 30 V; (11)Emitter-Collector Breakdown Voltage, BVCBO: 5 V; (12)Detector Power Dissipation @ TA= 25℃, PD: 150 mW; Derate above 25℃, IC: 2.0 mW/℃; (13)Continuous Collector Current, IC: 150 mA.

Features

4N33 features: (1)High sensitivity to low input drive current; (2)Meets or exceeds all JEDEC Registered Specifications; (3)VDE 0884 approval available as a test option-add option .300. (e.g., 4N29.300).
